capacity: 4,5 kN
stroke: 40 mm - 120 mm depending of model

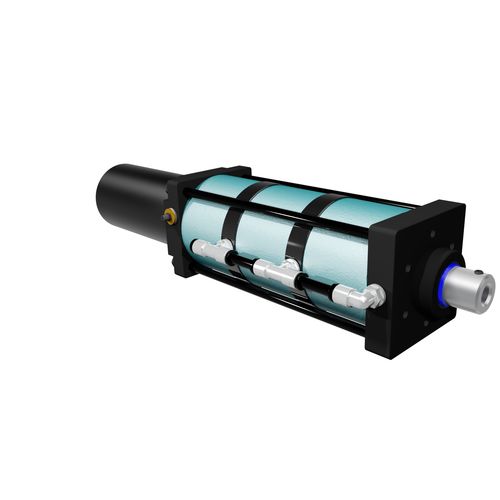

DAF press cylinders are ready-to-use building blocks for plant and special machine construction.

DAF press cylinders have a modular design and can be selected exactly with the dimensions required for the intended application. This enables an optimal price/performance ratio.

DAF press cylinders are available in various sizes with capacities of 4,5 kN to 34 kN. Standard stroke lengths from 40 mm to 120 mm are available in 20 mm steps.

DAF press cylinders are equipped as standard with an innovative, precise and easy to use system that allows for precise stroke settings. The press-in depth can thus be adjusted to 0.01 mm reading accuracy over a maximum stroke length of 80 mm by means of a scale nut with vernier.

The press ram is secured against rotation.

The position of the ram is controlled by means of reed contacts. There is no readjustment of the sensors necessary when the length of stroke is changed because the magnets always move to the same end positions.

Parameter Name	Parameter Value
Type	pneumatic
Configuration	double-acting
Applications	for presses
Other characteristics	precision flange
Stroke (mm)	0 - 40
Force (N)	4.5 - 4.5
