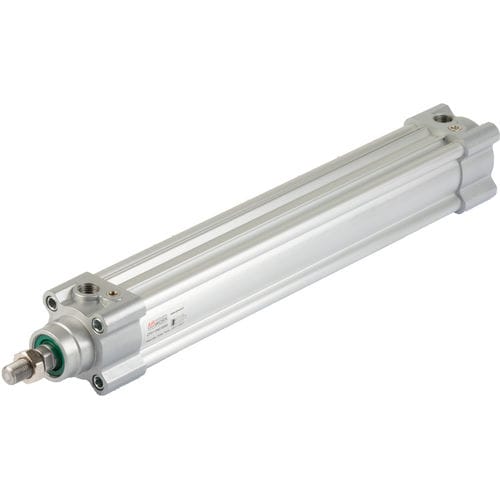

NEW ISO 15552 Cylinders – CF Series

- Linear, streamlined and elegant design
- Piston entirely in aluminum with special anti-wear guide band
- Specially designed bronze guide bushing
- MFS System
- Wide selection of rod gaskets
- Standard or tie-rod version
- Available in ATEX version

The new ISO 15552 cylinders of the Airwork CF series represent the new generation of ISO pneumatic cylinders that, thanks to the use of innovative materials and a state-of-the-art construction philosophy, place these cylinders at the top of the category.
Lightness, robustness and precision are the main features of this new Airwork product.

The CF series is produced with bore lengths between 32 mm and 100 mm.

» The new shape of the heads gives the cylinder a linear, streamlined and elegant design

» The piston is made entirely of aluminum with a special anti-wear guide band to make it indestructible, precise and performing even after years of intensive use and with strong temperature variations

» The guide bush of the rod made of a particular bronze is specially designed for linear sliding with large loads

» It is the first Airwork cylinder equipped with MFS (Multi Function System), with 3 immediate advantages: reduction of piston impact noise, perfect shirt centring, perfect sealing between head and profile

Parameter Name	Parameter Value
Type	pneumatic
Technology	piston magnetic piston with threaded rods with through rod
Configuration	double-acting single-acting
Material	steel, anodized aluminum, stainless steel, light alloy
Norms	ISO, ISO 6431, ISO 15552
Protection class	dust-proof robust
Applications	for lifting applications for materials handling for robots for vehicles high-temperature for welding applications for harsh environments for process automation for agricultural machinery for explosive atmospheres for lifting chemistry food industrial for OEM for the automotive industry
Other characteristics	externally-guided medium-pressure corrosion-resistant interchangeable square head repairable multi-purpose low-temperature heat-resistant rod lock with mechanical interlock system low-pressure three-position explosion-proof with protective bellows with adjustable cushions with shock absorber multi-position with integrated solenoid valve position-sensing with integrated position sensor with sensor option step custom high-performance ATEX with internal stroke limiter with flange long-stroke double with external guide tandem low-friction high load capacity high-speed
Stroke (mm)	25 - 2700
Force (N)	8 - 785.4
