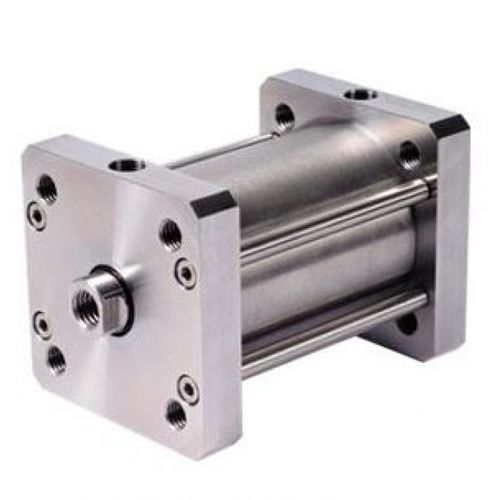

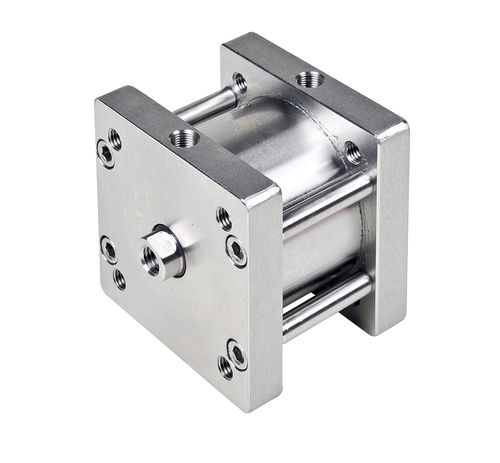

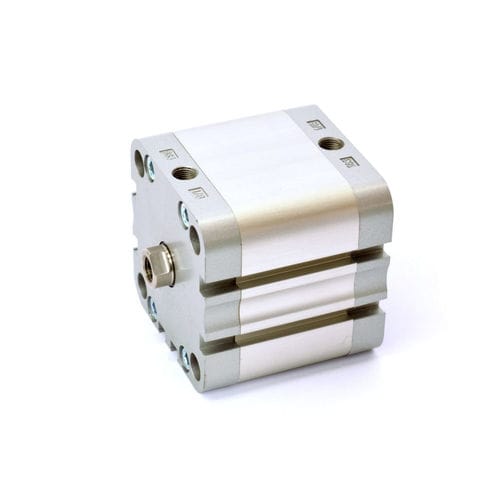

Compact Cylinders ø20-100 ISO21287

Covers: Painted die-cast aluminum
Tube: Anodised aluminum
Seals: Polyurethane - NBR
Guide bush: Sintered bronze
Piston Rod: AISI303 stainless steel
Max pressure: 10 bar
Operating temperature: -20 ° C + 80 ° C with dry air
Fluid: Filtered and lubricated and non-lubricated compressed air

Parameter Name	Parameter Value
Type	pneumatic
Configuration	double-acting single-acting spring-return
Material	stainless steel
Applications	chemistry industrial
Other characteristics	compact tie-rod
Stroke (mm)	5 - 60
Force (N)	188 - 4710
