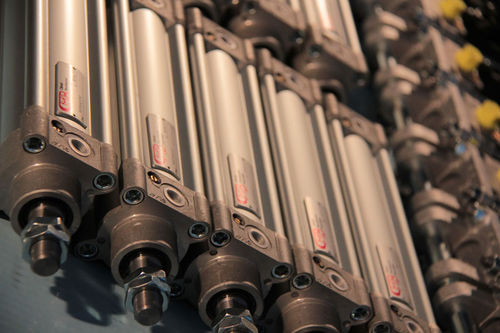

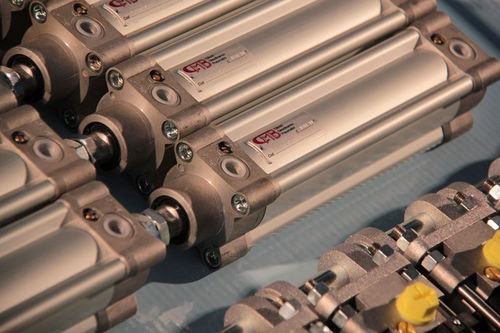

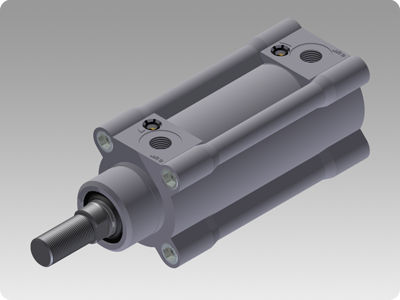

The ISO 6431 series of pneumatic cylinders was made to satisfy modern pneumatic movement applications where precision, repetition and movement speed are requested, for example in the food, machine tool, industrial machinery for working wood and rubber sectors.

This line of cylinders is made using modern sealing systems.

The special configuration of the barrel and the heads make cleaning easy, thanks to assembly and dismantling simplicity.

These cylinders can also work without being lubricated, and a magnetic version can be made without varying the size.

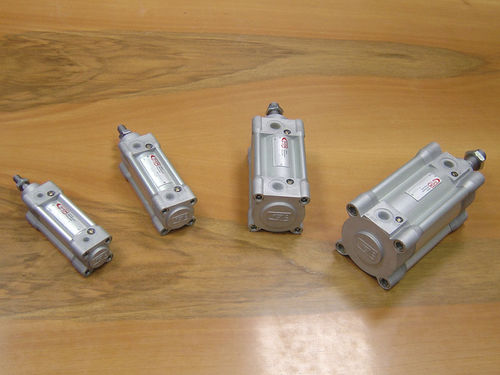

The range of cylinders we produce includes 9 bores, that can be combined with 7 mounting types. Various accessories are available for the rod and the rear mounting.

The firm CMB produces pneumatic and hydraulic cylinders according to standardized international norms or upon request. Thanks to its twenty-year experience, its production is reliable and lasting for a large application field. With this particular aim, the new ISO 6431 SERIES of pneumatic cylinders, presents a functional character and has sizes which make of this type of cylinder one of the most complete and reliable production available on the market.

Always in the complete respect of the overall sizes concerning ISO 6431 VDMA norms, some non-standardized mountings have been added, so that the cylinders mountings possibility has been enlarged. The particular choise of specific materials gives these cylinders the possibility to work also without lubricant (dry air). All cylinders can be supplied in magnetic version. The front cylinder head and the barrel conformation ( up to d.

Parameter Name	Parameter Value
Type	pneumatic
Technology	piston magnetic piston with piston rod
Configuration	double-acting
Material	aluminum
Norms	ISO, ISO 6431
Applications	for machine tools food industrial
Stroke (mm)	1 - 3000
Speed (mm/s)	1000 - 1000
