» In compliance with the ISO 15552 standard
» Weight reduced by 25%
» Low noise
» More accurate with fine regulation of cushioning
» Flexibility and versatility VERSIONS AVAILABLE:
» Low friction
» Uniform movement (low speed)
» High and low temperatures
» Corrosion-resistant
» Hydrolytic environment
» Food and beverage
» Lube-free operation
» Dirty and dusty environments
» Protective bellows
» Back to back
» Tandem and multi-position
» With rod lock
» Polyurethane coating
» ATEX

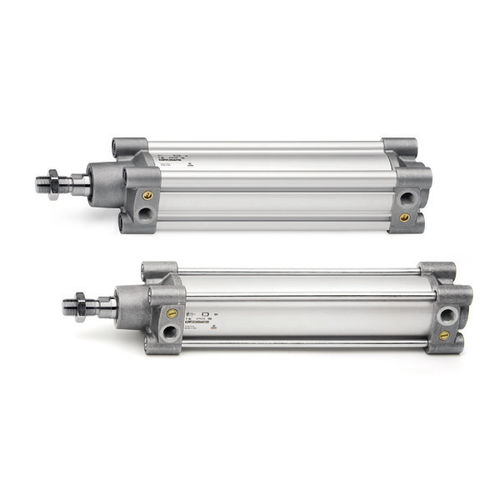

The Series 63 pneumatic cylinders have been developed to guarantee high performance and versatility.
Thanks to a new system of adjustable pneumatic cushioning, the cylinders can always guarantee the best regulation whilst significantly reducing noise caused by the impact of the piston on the end block.

Besides the standard version, which can be used in many sectors, specific solutions
have been developed for applications such as food processing, agriculture, in tensioning, dosing systems and dancer arms for winding applications. There are also versions for demanding application environments, capable of withstanding extreme temperatures, corrosive atmospheres etc.

Parameter Name	Parameter Value
Type	pneumatic
Technology	magnetic piston
Configuration	double-acting single-acting spring-return
Material	stainless steel, aluminum
Norms	ISO 15552
Applications	high-temperature
Other characteristics	standard positioning with adjustable cushions low-friction low-temperature rod lock ATEX
Stroke (mm)	10 - 2500
Pressure	Max.: 10 bar (145 psi)Min.: 0.1 bar (1.5 psi)
Rod diameter	Max.: 125 mm (5 in)Min.: 32 mm (1 in)
Speed (mm/s)	5 - 1000
Ambient temperature	Max.: 80 °C (176 °F)Min.: 0 °C (32 °F)
