» In compliance with ISO 15552 standard and with the previous DIN/ISO 6431/ VDMA 24562 standard
» Rolled stainless steel rod
» Adjustable pneumatic cushioning
» Rod scraper in brass
» ATEX

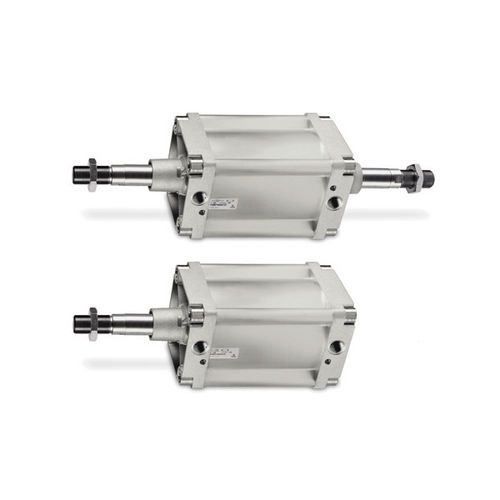

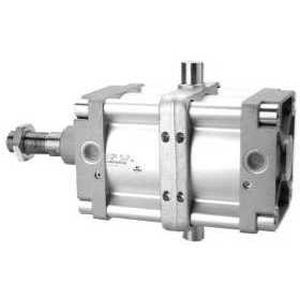

Series 41K cylinder comply with the ISO 15552 standard and can be assembled with the entire range of standard accessories.
The mounting brackets used on the end-blocks tube are designed in an extremely
secure way, making use of cylinder tie-rods positioned internally and not visible
on the assembled cylinder.
This cylinder series is normally equipped with adjustable endstroke cushioning
by means of a screw positioned on the end-block.

Parameter Name	Parameter Value
Type	pneumatic
Technology	magnetic piston tie-rod
Configuration	double-acting
Material	stainless steel, anodized aluminum
Norms	ISO 15552
Other characteristics	standard with adjustable cushions tie-rod
Stroke (mm)	10 - 2500
Pressure	Max.: 10 bar (145 psi)Min.: 1 bar (14.5 psi)
Speed (mm/s)	10 - 500
Ambient temperature	Max.: 80 °C (176 °F)Min.: 0 °C (32 °F)
