Pneumatic cylinder 2-600..

About


The 7/16″ bore air cylinder is available with 5/32″ stroke and features a spring return option.

Force Factor: 0.150 in extension, 0.138 in retraction.

Approximate Weight: 31g in brass. Weight will vary slightly, depending on configuration.

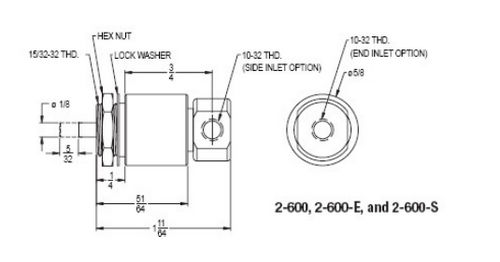

Porting: 10-32 internal threaded side inlet, 10-32 internal threaded end inlet, or 1/8” external NPT end inlet.

Materials: Brass body with 300 series Stainless Steel internals. Buna-N seals.



PARAMETERS

Parameter Name Parameter Value
Type
pneumatic
Configuration
single-acting
Material
stainless steel, brass
Other characteristics
  • threaded
  • miniature
Force (N)
0.14 - 0.15
Pressure
Max.: 250 psiMin.: 0 psi
