DIN ISO 21287 pneumatic compact cylinder double-acting with magnetic piston

Description
Material:

Cylinder tube: aluminium.
End cover: die-cast aluminium.
Piston rod: stainless steel 1.4301 (from cylinder Ø 32 mm 1.4021).
Piston and piston rod seal: polyurethane.

Version:
Cylinder tube: anodised.
Endcap: bright.
Piston rod: bright.

Note:

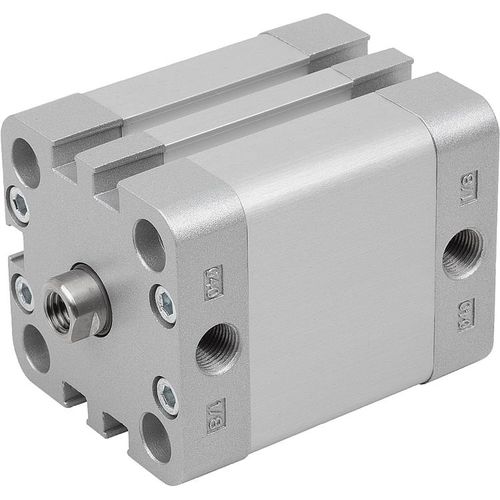

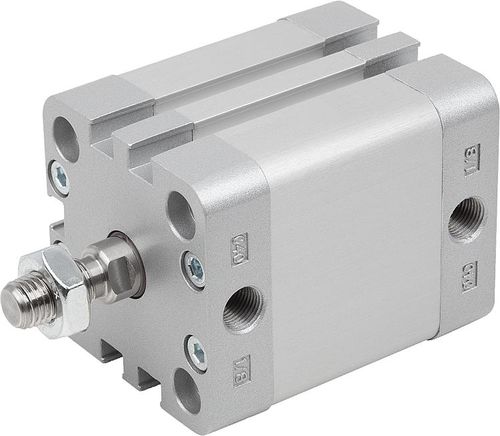

Double-acting pneumatic cylinder acc. to DIN ISO 21287. Piston rod with internal or external thread, position detection for proximity switch and flexible damping on both sides.

Thanks to their compact structural dimensions, compact cylinders are ideal for use in installation spaces where space is limited.
Technical data:
Operating principle: double-acting.
Operating medium: filtered and dried air, oiled or not oiled.
Operating pressure: 1 to 10 bar.
Damping: flexible damping on both sides, adjustable.
Mounting position: arbitrary.
Position detection for proximity switch.

Pneumatic connection: DIN EN ISO 228/1.
Temperature range:
-20 °C to +80 °C.

Parameter Name	Parameter Value
Type	pneumatic
Technology	magnetic piston
Configuration	double-acting
Material	aluminum, stainless steel
Norms	ISO 21287
Other characteristics	compact
