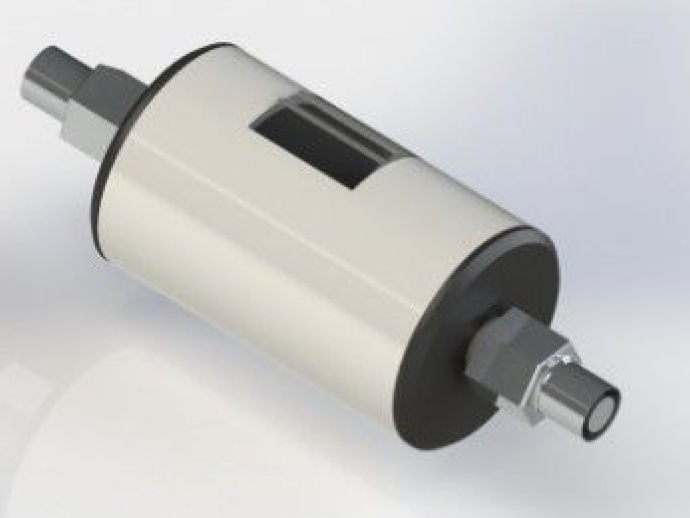

The pneumatic stroke counter, installed in the air supply line of the pump, allows the indirect measurement of the amount of product pumped by pneumatic pumps to on / off cycle (both automatic and with external control panel). It has a six-digit totalizer display. In the standard configuration it is supplied with fittings for pipes of 8 mm , but you can request the installation of fittings for 10mm. In addition the devices can be equipped with reed contact output for connection to a PLC or external control system.

Diameter
50 mmm
Material - POM/PVC
Fittings Material - Brass
Total Lenght - 140 mm
Supply Pipe - 8x1
Delivery Pipe - 8x1
Weight - 100 g
Max Flow Rate - max 7 bar

Parameter Name	Parameter Value
Type	cycle stroke
Display	digital
Technology	pneumatic
Applications	industrial
Protection level	not specified
Other characteristics	automatic contact
