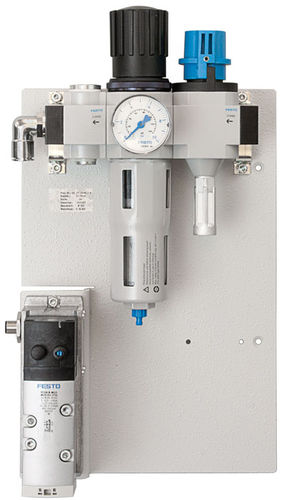

The Pneumatic control blocks have safety components for EC type approved press systems manufactured by SCHMIDT Technology. The unit comes with a major dump valve that has 3/2-way magnetic valve, filter, pressure regulator , P/E signal converter, gauge and a high performance muffler.The Pneumatic manifold block comes with 5/2-way solenoid valves and it has 7-fold distributor.

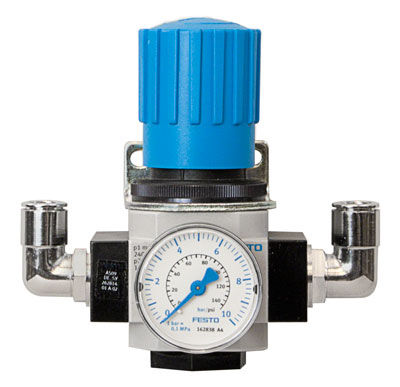

The approach force can be adjusted accurately through the regulator.The force output preselector and the pneumatic control blocks are accessible in two sizes Connectors 1/4” ISO 1 and Connectors 1/2 ISO 2 this depends on the air consumption of the press. The operational pressure is between 3 and 6 bars and the pressure can be regulated to 1 bar, and thus the starting. With the force output pre-selector like the standard on hydro-pneumatic presses the pressure can be regulated to under 1 bar.

Parameter Name	Parameter Value
Type/technology	pneumatic
Product applications	for forming machines
