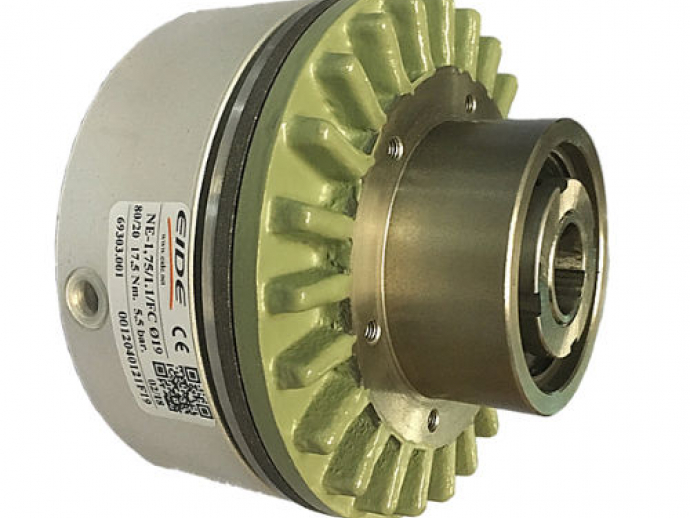

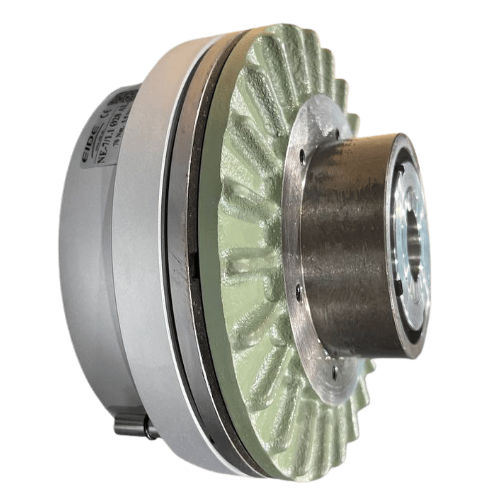

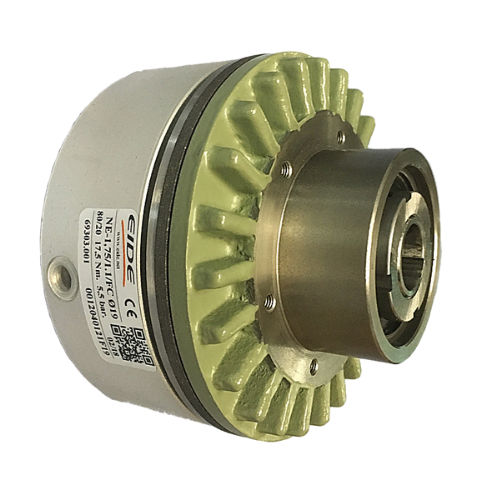

The NE type pneumatic clutch by EIDE is a compact unit with a pneumatic clutch which disengages via a spring reaction. The actuator is powered radially with compressed air at a nominal pressure of 5.5 bar. Air consumption is minimal and the chamber has a chrome plated sleeve, providing optimal performance.

By adequately regulating the air pressure, it is possible to obtain control over the machines acceleration time and also transmission torque control providing safety for the rest of mechanisms.

Features:
Compact and self standing.
Regulation from 0 to 5.5 bar.
Clutch control by air pressure.

Applications:
Printing machines
Packaging machines
Machine tool
Textile industry
Cable industry
Street sweepers

Parameter Name	Parameter Value
Type	friction disc
Operation	spring, pneumatic
Other characteristics	with bearings through-bore
Torque (Nm)	17.5 - 550
Rotational speed (rpm)	1000 - 2500
