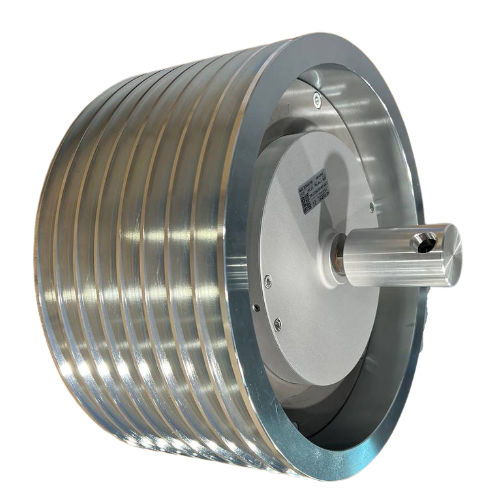

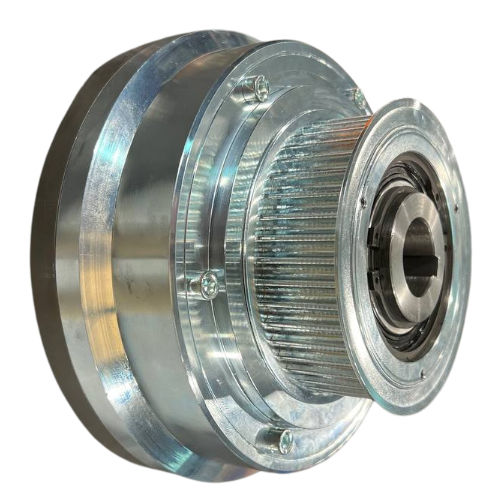

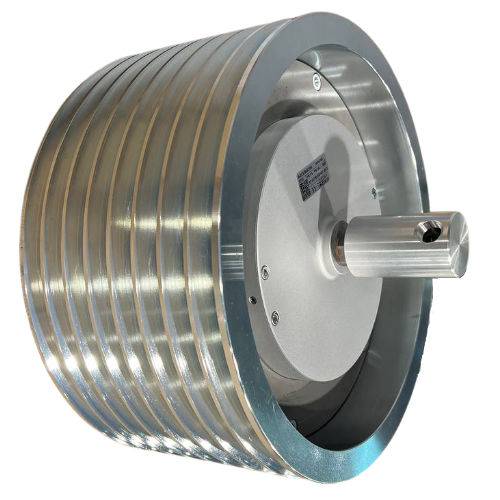

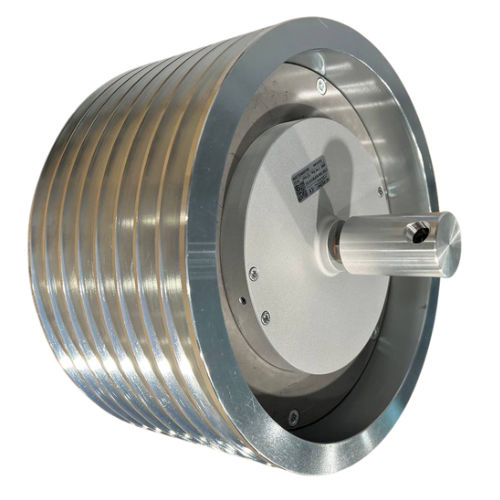

The ENP pneumatic pulley clutch is a compact unit for air clutch and spring reaction release. The ENP clutch is characterized by having a pulley integrated in the clutch, which translates into an extremely compact, robust, lightweight construction with the absence of protruding parts.
Another remarkable feature is its tightness, which makes it resistant to adverse operating conditions with the presence of water, dust, etc.
The ENP pneumatic pulley clutch is a very compact unit of pneumatic clutch and release by spring reaction.
There are standard standard pulleys for each size, although on request different types of pulleys are built or even without it, thus adapting to customer needs.
The air supply is carried out by means of a rotating air intake at a nominal pressure of 5.5 bar. Given its structure, it does not require any special maintenance; wear is minimal and the bearings are greased at the factory, requiring no further attention.
Characteristics:
Extremely compact.
Specially designed for cleaning vehicles.
High protection.
The ENP pneumatic pulley clutch can be used for different types of machinery such as:
Cleaning vehicles.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
|
| Operation |
spring, pneumatic
|
| Applications |
|
| Other characteristics |
with bearings
|
| Torque (Nm) |
|
| Rotational speed (rpm) |
2000 - 3000
|
| Power (W) |
0 - 0
|
