Pneumatic work holding fixture & vertical toggle clamp

Ideal for quick clamping in repetitive production operations

The pneumatic toggle clamps offer an increased productivity by fully automatic hands free operation

Direct feeding of the mass via the gripping jaws reduces the arc blow effect.

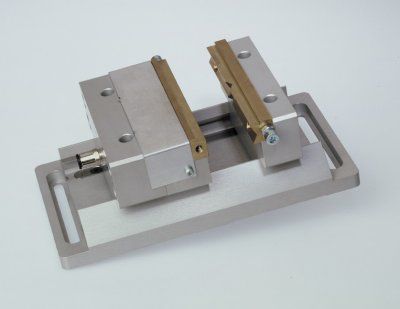

PWS 76 has been designed for use wherever workpieces have to be clamped and positioned quickly and reliably

The interchangeable gripping jaws can be machined and thus adjusted to diverse workpiece shapes

Work holding fixturePWS-76
Designed for:Bench Welder SWH - 2
Clamping Force: 60 kp
Work piece size:80 mm
Clamp stroke:max. 5 mm
Air Consumption:0,033 l / stroke
Air pressure:6 bar
Weight:2,3 Kg
Dimensions:200 x 110 x 68 mm

Parameter Name	Parameter Value
Type	pneumatic
Applications	workpiece
