Combined clamping and braking
Safety Clamping for Rail Systems

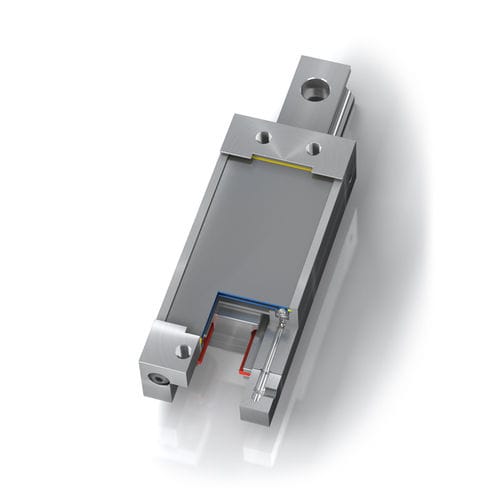

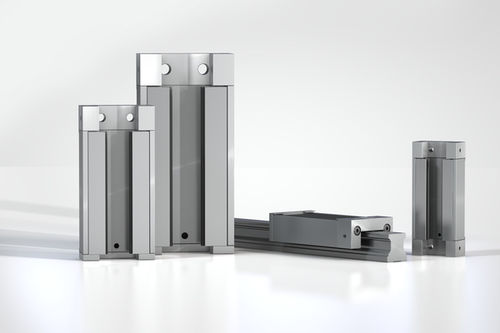

Always on the safe side: The safety clamping elements LOCKED SL clamp and brake directly on the clear area of guide rails on linear modules with forces of up to 10,000 N. They are individually adjusted to the linear guide being used and are available for all rail sizes from 20 mm to 65 mm and profiles from all renowned manufacturers.

Special brake pads made of low wear sintered metal are used for the additional emergency stop braking functions in the safety clamping elements

LOCKED SL. The SL product family offers optimum static clamping with a service life up to 1 million cycles or up to 500 emergency braking operations. They also offer low system costs in comparison with hydraulic and electric solutions.

The LOCKED-Family SL is particularly used in machinery and special purpose machines.
Rail sizes 20 mm to 65 mm

Emergency use 500

Clamping cycles 1,000,000

Mounting in any position

Material Outer body: tool steel; Brake components: Sintered graphite

Pneumatic medium dried, filtered air

Operating temperature range 15 °C to 45 °C

Parameter Name	Parameter Value
Type	pneumatic
Applications	linear guide rail
Other characteristics	steel
Clamping force	Max.: 10,000 NMin.: 540 N
