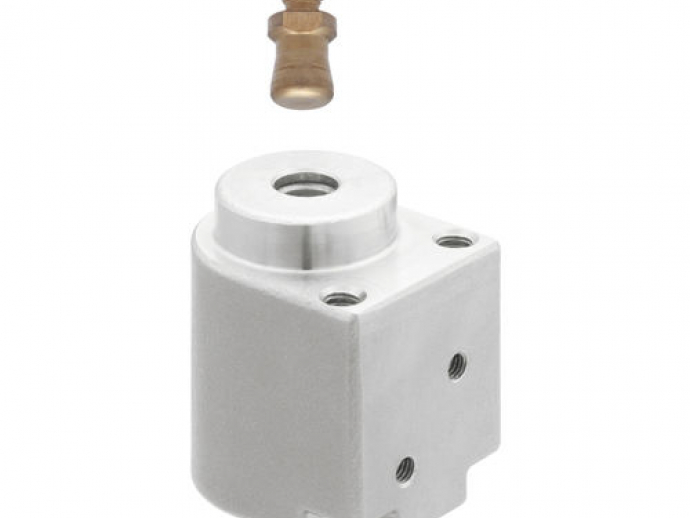

Pneumatic Pin Holding Clamp is an automated quick fastener with air.
Ideal for frequent changeover of tooling, plate and fixture in machinery.
Pneumatic Pin Holding Clamp reduces your setup time in semiconductor manufacturing/food processing/pharmaceutical & cosmetic production/packaging machines.

Secure clamping by ball locking
Double-acting
Inner spring keeps clamping without air supply.


- Technical Information -
Clamping force: 20 / 60N
Holding force: 70 / 130N

- Materials -
Body: SCS13 stainless steel (equivalent to SUS304）
Piston: SUS303 stainless steel
Wedge/Ball: SUS440C stainless steel / Quenched and tempered
Spring: SUS304WPB stainless steel
Retaining Ring: SUS304 stainless steel
Seal: Nitrile rubber (NBR)

Parameter Name	Parameter Value
Type	pneumatic
Applications	workpiece
Other characteristics	compact double-acting stainless steel small
Clamping force	Max.: 60 NMin.: 20 N40 N
