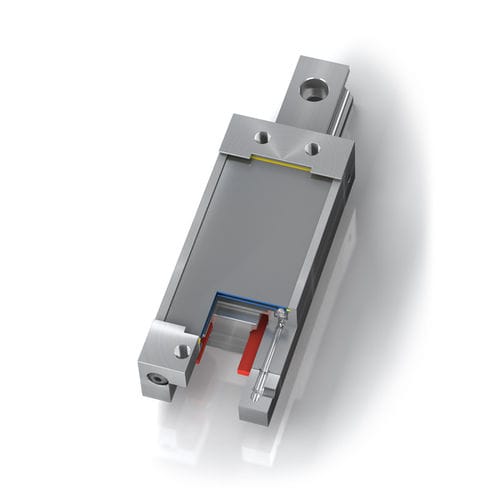

Pneumatic clamping element PL

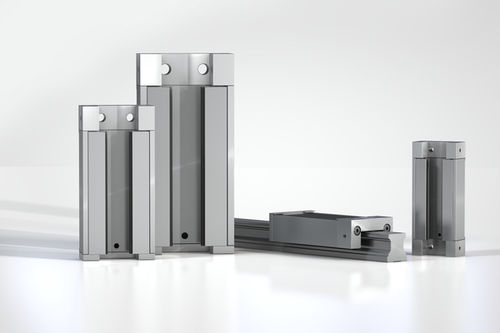

Pneumatic clamping element PL

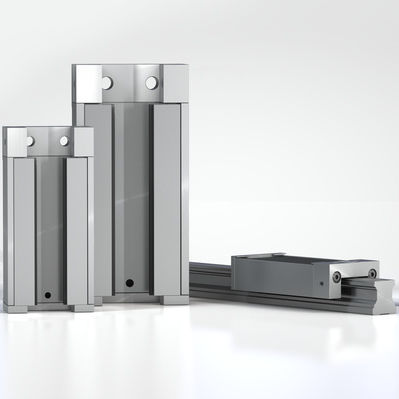

Pneumatic clamping element PL

About


High clamping power for all rail profiles
Process Clamping for Rail Systems
Always on the safe side: LOCKED PL process clamping elements clamp directly onto the clear area of guide rails on linear modules with forces of up to 10,000 N. They are individually adjusted to the linear guide being used and are available for all rail sizes from 20 mm to 65 mm and profiles from all renowned manufacturers.

This product family achieves 100 % clamping force even on greased rails, due to the steel pads that are used. It offers optimum static clamping with up to 1 million cycles. These process clamping elements also impress with their low system costs in comparison with hydraulic and electric solutions.

The various LOCKED PL models from ACE are mainly used on machine tools and customised machines.
Rail sizes 20 mm to 65 mm

Clamping cycles 1,000,000

Mounting in any position

Material Outer body: tool steel

Pneumatic medium dried, filtered air

Operating temperature range 15 °C to 45 °C



PARAMETERS

Parameter Name Parameter Value
Type
pneumatic
Applications
  • linear guide
  • rail
Other characteristics
steel
Clamping force
Max.: 10,000 NMin.: 540 N
