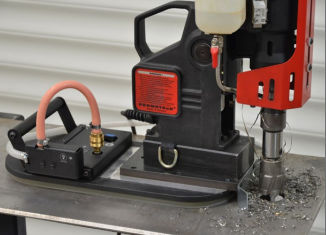

Vacuum pad is a special type of clamping device for compact mag drills. It enables magnetic drilling
machines to effectively operate on non-ferrous materials, where it is impossible to fit the magnetic base of a drill directly to the workpiece.

Key features

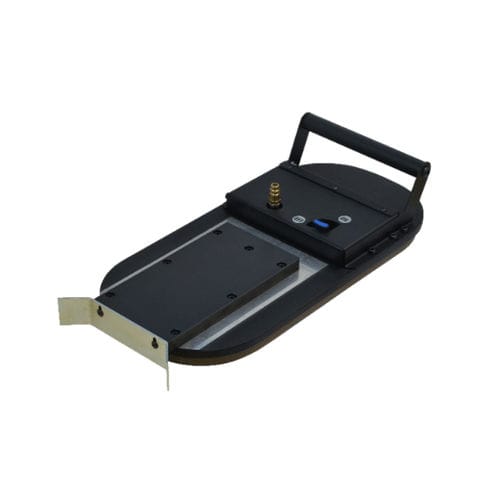

Vacuum Pad for Mag Drills

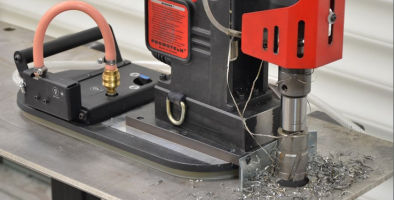

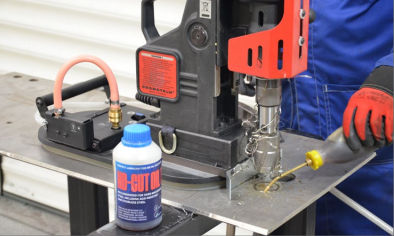

The vacuum pad provides the ability to drill on non-magnetic or thin surfaces and materials with certain surface imperfections. It is intended for use with stainless steel, aluminum and thin carbon steel plates. Depending on the requirements and operating conditions, the pad can be powered by vacuum supply or compressed air supply.

Superior features of Promotech Vacuum Pad

• enables drilling in flat non-ferrous materials
• for use with Promotech mag drill models: PRO-36, PRO-40, PRO-51
• includes 2-meter pump connection hose
• 2 possible configurations: – vacuum supply (standard) – compressed air supply (optional)

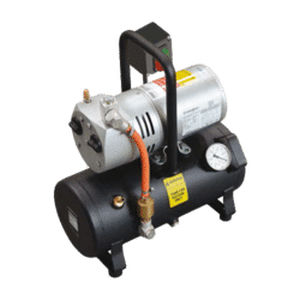

Set with portable vacuum pump

Portable vacuum pump with safety reservoir – ideal solution for working together with vacuum pad

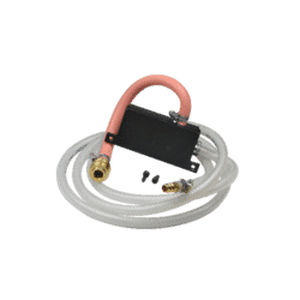

Set with compressed air ejector
Optional configuration – compressed air supply- Optional compressed air ejector generates a vacuum thanks to high flow speed of air according to the Bernoulli principle. The vacuum pad equipped with the compressed air ejector can be an effective solution in numerous industrial plants and workshops, where compressed air pipe system is widely utilized.

Parameter Name	Parameter Value
Type	pneumatic
Applications	workpiece
Clamping force	3,800 N, 4,800 N
