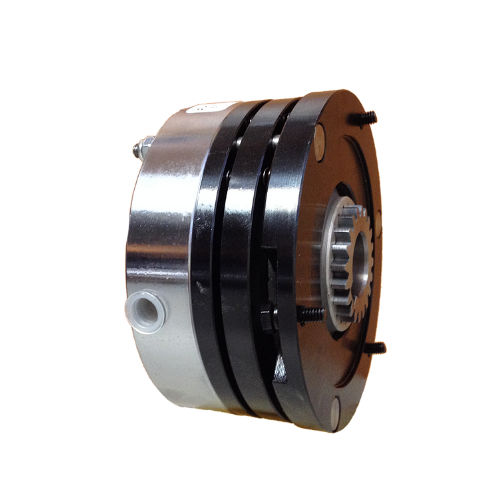

The FZN pneumatic brake is a unit for work on horizontal axes, with a high degree of reliability, good heat dissipation, fast response speed and minimal residual torque. With air pressure, it stays braked, without air pressure, it is released. A single version is built, for dry work. As an option and on request, the brake can be served:



The FZN pneumatic brake can be used for different types of machinery such as:

Textile sector
The graphic arts industry

Parameter Name	Parameter Value
Type	disc
Operation	pneumatic clamping
Other characteristics	custom
Torque (Nm)	6 - 350
Rotational speed (rpm)	3000 - 3000
