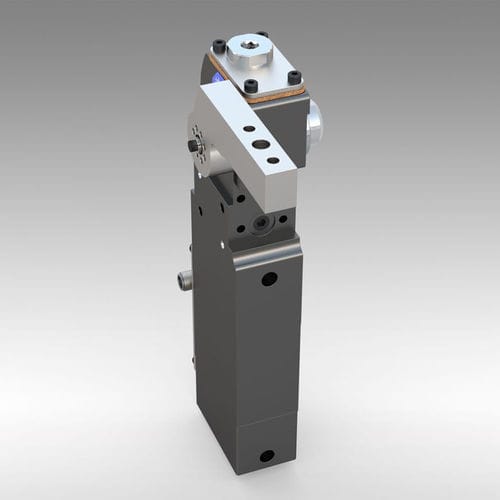

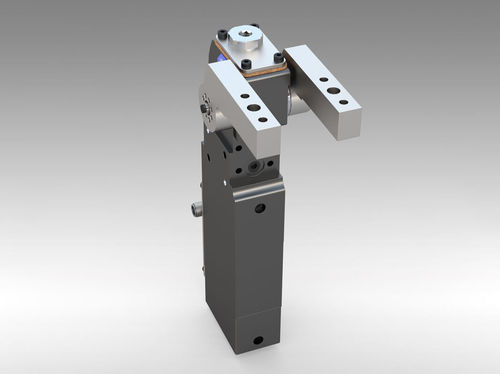

The TPCA adjustable arm opening sealed precision power clamps by BTM are ideal for a range of industrial applications. The TPCA 42 is the smallest of the TPC adjustable series with a 42 mm oval cylinder.

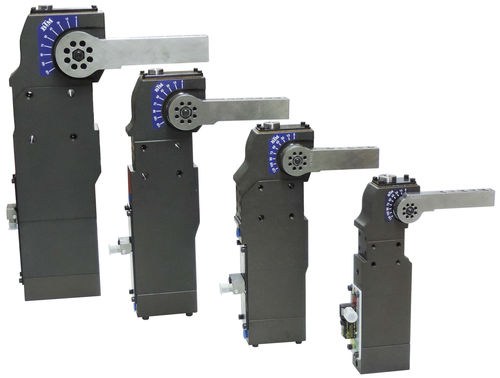

BTM’s TPCA series of adjustable clamps are NAAMS compliant pneumatically operated sealed precision power clamps available in four standard sizes: 42, 52, 62 and 82mm.

Each clamp is constructed using a one-piece body, and each has been designed to be rugged, yet economical, making them ideal for a range of industrial applications.

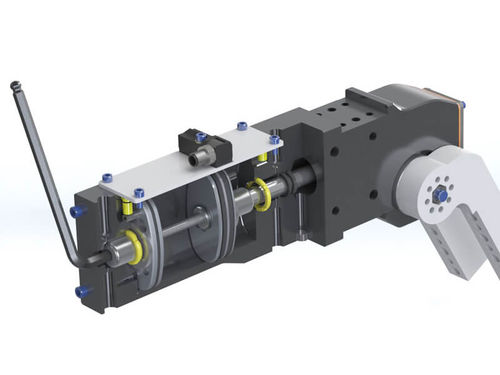

These clamps utilize patented TRILOK technology - a three point locking mechanism designed to keep a locked clamp locked, even if air pressure is lost.

This allows the TPCA to have the flexibility to be used as a toggle clamp, a precision back up, or as a part trap.

Features

Pin Arm Drive for Versatile Arm Positioning and Simplified Arm Change
Fully Adjustable Arm Opening up to 120°
Integrated Proximity Switch
Top and Bottom Porting
One Piece Body with Integrated Cylinder
Sealed Mechanism – Lubricated for Life of Clamp
Access to Manually Unlock Clamp Linkage
Patented Precision TriLok Mechanism

Parameter Name	Parameter Value
Type	pneumatic
Applications	machining
Other characteristics	adjustable
