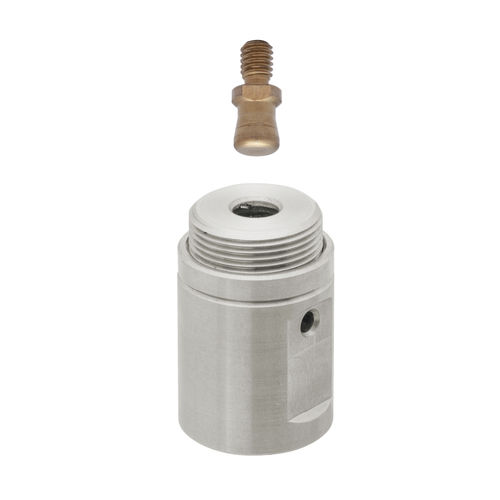

Pneumatic Pin Holding Clamp is an automated quick fastener with air.

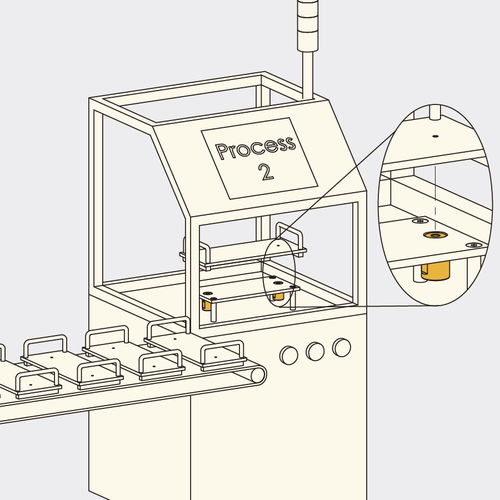

Ideal for frequent changeover of tooling, plate and fixture in machinery.
Pneumatic Pin Holding Clamp reduces your setup time in semiconductor manufacturing/food processing/pharmaceutical & cosmetic production/packaging machines.

Secure clamping by ball locking
Single-acting
Compact pull down clamp


- Technical Information -
Clamping force: 20 / 40N
Holding force: 60 / 90N

- Materials -
Body/Piston: SUS303 stainless steel
Wedge/Ball: SUS440C stainless steel / Quenched and tempered
Spring: SUS304WPB stainless steel
Retaining Ring: SUS 304 stainless steel
Seal: Nitrile rubber (NBR)

Parameter Name	Parameter Value
Type	pneumatic
Applications	workpiece for quick die change on press for the food industry
Other characteristics	compact single-acting stainless steel small light
Clamping force	30 NMax.: 40 NMin.: 20 N
