About
• Available from sizes 50 to 380, each in two stroke variants. Optionally with gripping force safety device and/or dirt cover.
• Fastening of the gripper fingers via centering sleeves (included in the scope of delivery).
• Centrically clamping in compact design made of high-strength, hard-coated aluminum alloy
• All functional parts made of hardened steel for maximum service life
• Wedge hook principle with pneumatic actuation (hydraulic actuation available on request)
• Position monitoring with inductive or magnetic position sensors
• Optionally available with FKM seals for higher temperatures up to 150°C (on request)
• Integrable purge air connection to prevent contamination

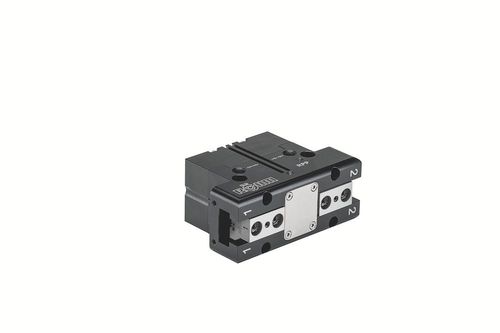

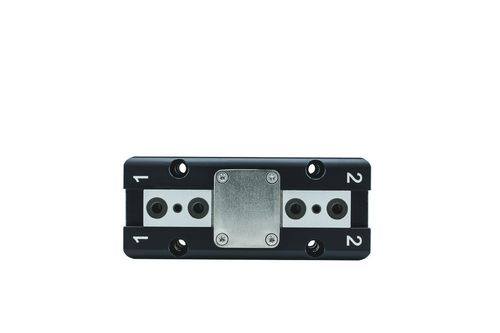

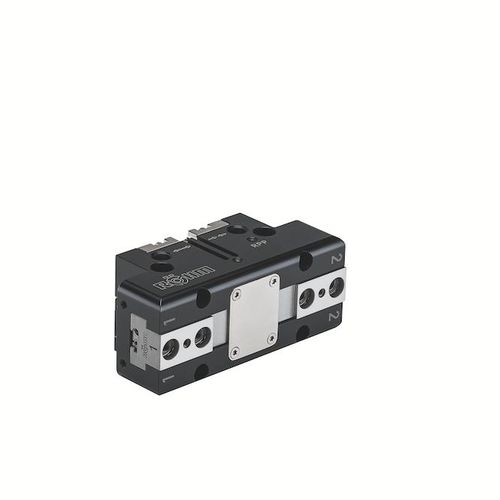

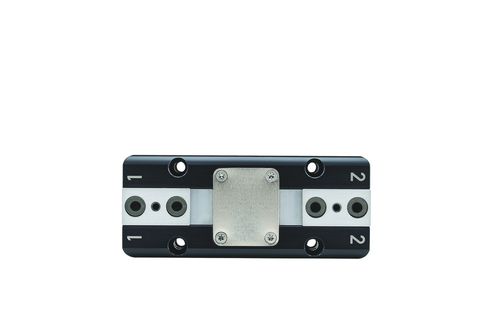

Universal gripping of round and angular workpieces with two parallel gripper fingers for handling with robots or portals.
• High gripping force with low dead weight and compact design
• High torque support for using long gripper fingers thanks to elongated jaw guide
• Maximum flexibility thanks to versatile connection and fastening options
• Long service life and high reliability thanks to specially ground base jaws in proven T-slot guide
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Operation |
pneumatic actuation
|
| Type |
parallel
|
| Number of jaws |
2-jaw
|
| Application |
|
| Options |
|
| Grip strength (N) |
208 - 505
|
| Stroke (mm) |
2 - 4
|
