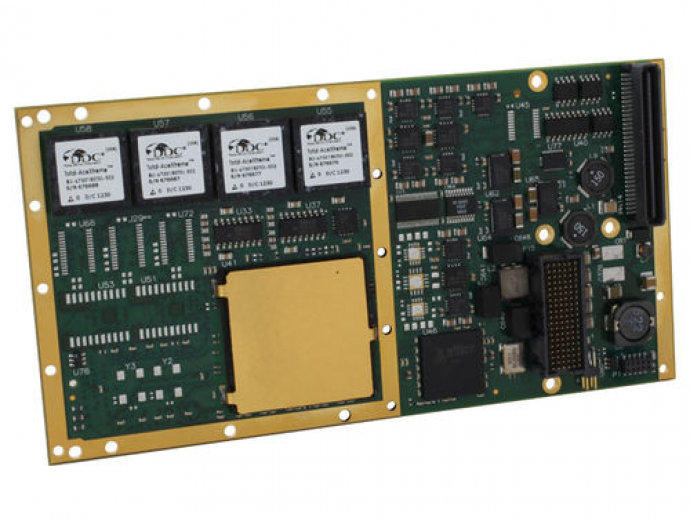

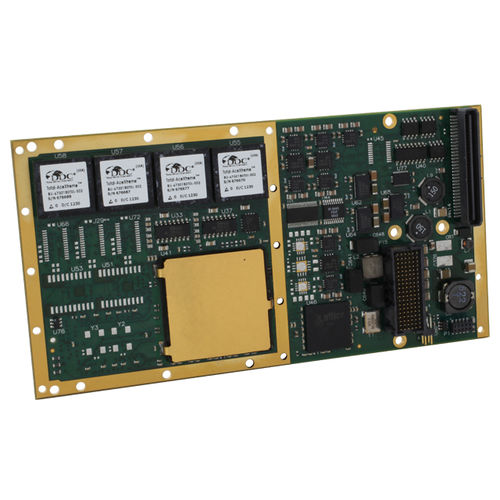

PMC interface card BU-67118

PMC interface card BU-67118

PMC interface card BU-67118

About


DDC's Multi-Channel Multi-Protocol PMC and XMC cards utilize the world's most advanced MIL-STD-1553 technology, Total-AceXtreme®, to deliver ultra low power dissipation, high MTBF, and high performance for rugged environments. The high channel count, unique I/O mix, and high performance can save space, power, weight, and cost.

Benefits:

High Channel Mix Saves Space, Weight, Power & Cost (SWaP-C)
One Card, Many I/O… MIL-STD-1553, ARINC 429, RS-232/422/485 Serial I/O, ARINC 825 (CANbus 2.0), Discrete I/O, IRIG B
High Performance, Rugged Design Ideal for Harsh Environments
On-Board DMA Engine for Low CPU Utilization
IRIG-106 Chapter 10, Tx Inhibit, and ARINC 717 Ideal for Flight Data Recorders
Applications:

Mission Computers
Displays and LRUs
Digital Data Recorders
Radar Systems/Situational Awareness
Commercial Aerospace
Flyable Avionics/UAVs
Data Loading
Data Monitoring
Ground Vehicles



PARAMETERS

Parameter Name Parameter Value
Bus standard
PMC, XMC
Bus
RS-232
Applications
avionics
Other characteristics
  • MIL-STD-1553
  • multi-channel
  • ARINC 429
  • multi-protocol
