5.7” Colour TFT Touchscreen with I/O, Serial Ports, CANBus and full Ethernet – All in One Product.

-Logic engine features 1MB of application memory with a 0.02mS/K logic scan. Online Programming Mode (making logic changes on the fly without going thru stop mode) is supported. Operator Interface features include:
-640×480 LCD TFT color graphics display with a high resolution resistive touchscreen
-4 function keys and a system key
-USB 2.0 On-the-Go port (mini-B 5pin) is available for programming
-USB 2.0 Host port (A) is available for exchanging files with USB FLASH drives
-Two (2) RS-232 and one (1) RS-485 port support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols

-Networking features include:
-Built-in 10/100 Ethernet port
-Integrated CsCAN port

-All units feature a microSD slot, supporting at least 32GB.

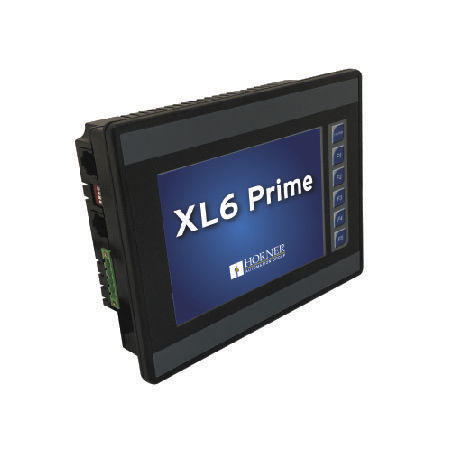

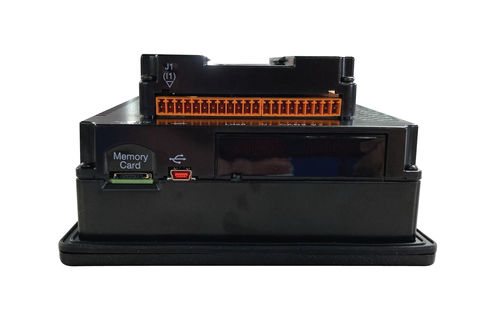

The XL6 Prime All-in-One controller with a built-in 5.7” VGA TFT colour touchscreen, built-in I/O, networking options, removable MicroS Card and USB ports. It’s programmable by Horner APG’s industry recognised Cscape software and can control a wide range of different processes and machines from small to medium applications. The eXL6 comes fully equipped with 100Mbps Ethernet built into every model. No additional Ethernet add-ons or accessories are needed. The XL6 Prime Ethernet support includes an integrated Web Server, FTP Host, Email, Modbus/TCP Master/Slave, Programming and more.

The XL6 Prime includes both a USB Host port and a USB On-the-go Port – each at USB 2.0 speeds (480Mbps).

Parameter Name	Parameter Value
Type	integrated panel-mount
Input/output	with integrated I/O
Network	RS485 RS232 Modbus Modbus TCP Ethernet
Other characteristics	with touch screen with integrated touch screen HMI
