Chain Tracks

Chain tracks for different needs
In addition to extruded and machined profiles and guides, HabiPLAST offers a complete range of corner and straight tracks that are designed for use with plastic and metal chains.
Alongside the standard tab and bevel tracks, there is also a magnetic version that makes chain removal both quicker and easier.

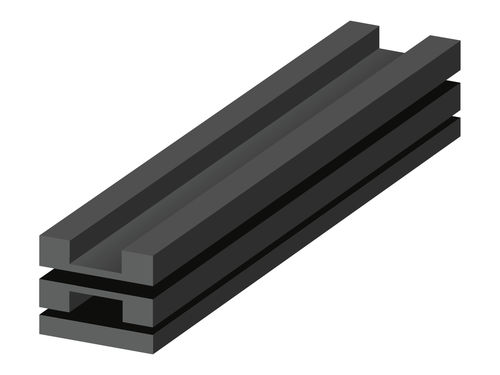

Tab and Bevel Tracks

Tab and bevel tracks have been the most common solution for several years for guide chains running along the curved section of conveyors.
They remain the most cost-effective solution for applications where frequent conveyor cleaning and the stability of the conveyed product are not a top priority.
Tab and bevel tracks are normally provided in UHMW polyethylene. Other materials are available on request.

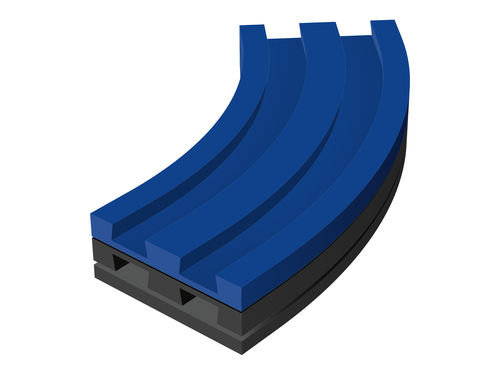

Magnetic Tracks

HabiPLAST magnetic corner tracks have been developed to allow easy and quick removal of the conveyor chain for frequent cleaning operations. At the same time, the tracks optimize chain retention along the curve.
The chain is held down by the force of magnetic poles. The number and position of the poles along the track are designed to maximize chain retention while minimizing the energy consumption required to move the chain.
HabiPLAST magnetic corner tracks are suitable for use with both plastic and metal chains.
The recommended material combination for magnetic tracks is:

TriboPlus cobalt blue TP40C for the carry lane
UHMW black polyethylene PE10B for the return lane
TriboPlus is a new generation of specially lubricated polyethylene with outstanding tribological properties.

Parameter Name	Parameter Value
Material	plastic
Product applications	conveyor chain
Other characteristics	curved
