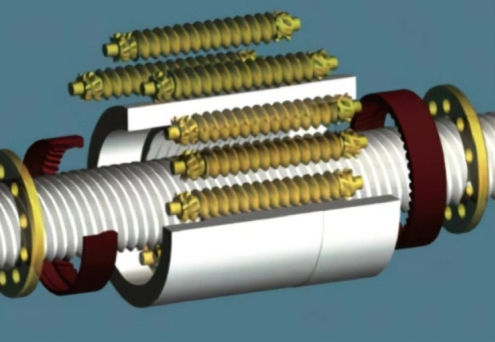

DGRHTV30-60 The planetary roller screw Electric Cylinder the maximum rated speed reaches 17.5-35 mm/s even more, effective stroke 10-3000mm, maximum rated thrust 180.5-361KN even more, parallel type.
Features
Application
The Planetary Roller Electric Cylinder can withstand heavy loads for thousands of hours in harsh environments, making it an ideal choice for applications requiring continuous duty.
Lubrication
Grease is usually recommended for lubrication of planetary wire levers, preferably those containing lithium, kinetic or calcium thickeners. The selected grease must have at least a viscosity of 100-150 cst at 40°C, Class II, with selective lubrication depending on the installation, dimensions and operating conditions of the screw。
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
electric
|
| Technology |
planetary roller screw
|
| Material |
steel
|
| Other characteristics |
high-force
|
| Stroke (mm) |
10 - 3000
|
| Force (N) |
180.5 - 361
|
| Torque (Nm) |
|
| Motor power |
8 kW (11 hp)
|
| Speed (mm/s) |
17.5 - 35
|
| Repeatability (mm) |
0.05 - 0.05
|
