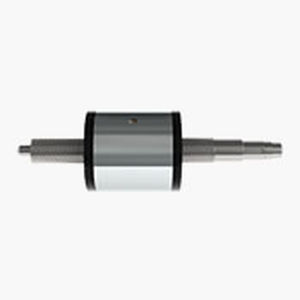

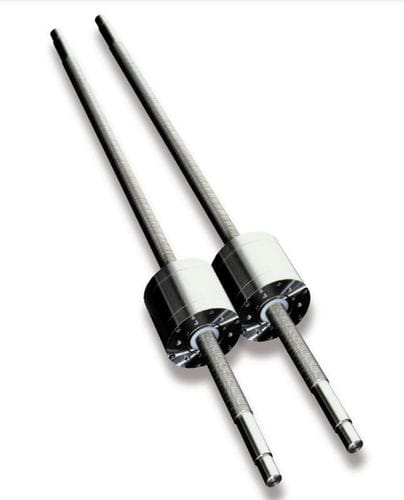

HIGH PRECISION FOR A WIDE RANGE OF APPLICATIONS

Moog has over 30 years experience in producing and designing customized high precision planetary roller screws that are suitable for a variety of markets and challenging motion control applications.

BENEFITS AND FEATURES OF MOOG PLANETARY ROLLER SCREWS

• ISO3408-3 classes 1-3
• Diameter from 15 mm [0.6 in] to 100 mm [3.93 in]
• Pitch from 2 mm [0.08 in] to 42 mm [1.65 in]
• Length up to 4,000 mm [157.5 in]
• Load capacity:
• Dynamic load up to 1,230 kN
• Static Load up to 3,500 kN
• Acceleration up to 40m/sec2
• Number of starts: 5-6

Parameter Name	Parameter Value
Options	planetary
