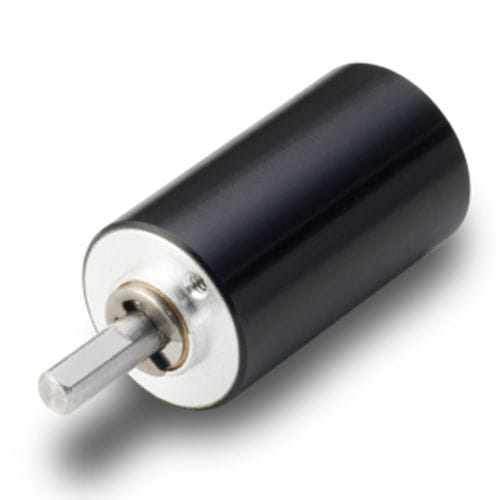

Our R13 is a full metallic gearhead designed with a planetary arrangement for applications requiring high torque in a relatively smaller package. Due to its lower backlash feature it is ideally suited for precision motion requirements in various applications. Along with the planetary geartrain benefits, its unique bearing system provides good strength for applications having higher radial loads.

Product Highlights
- For additional ratios, please download the specification pdf from the resources tab below
- High-precision performance at a competitive price point
- Reduction ratio of 5.5:1 to 915:1
- Rated torque 0.25 Nm
- Compact design
- Customization as per application needs

Sleeve and ball bearings options available
- Customization Available
- Custom shafts - flats, knurling, diameter, length
- Mechnical integration upon request (housing, front & rear flange, shaft)
- Special lubricants

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Torque (Nm)	0.2 - 0.5
Shaft configuration	solid-shaft
Number of stages	single-stage four-stage three-stage two-stage
Performance	low-backlash high-torque high-precision
Other characteristics	compact miniature
Rotational speed (rpm)	7500 - 7500
Backlash (°)	1.25 - 1.25 2 - 2
