• Maximum efficiency
• Light yet powerful
• Low friction bearing design
• Optimized lubrication
• 4:1 gear ratio, 98% efficient

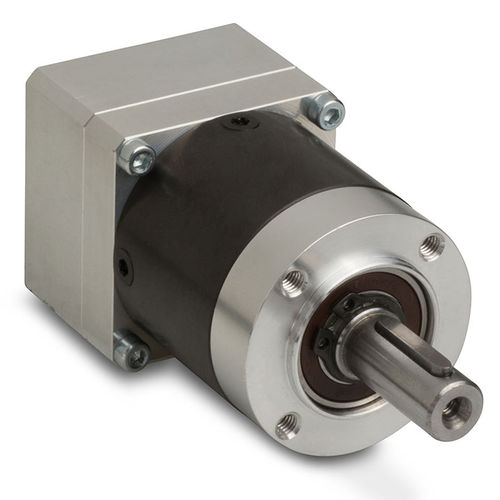

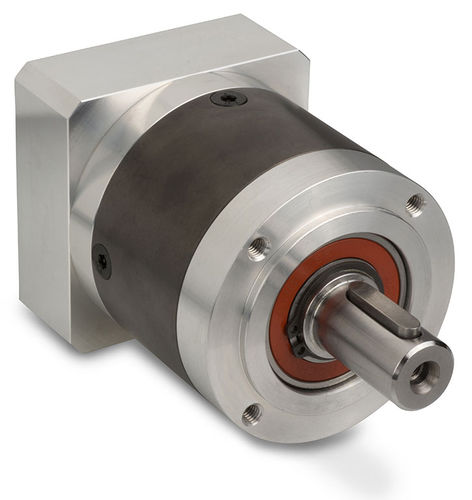

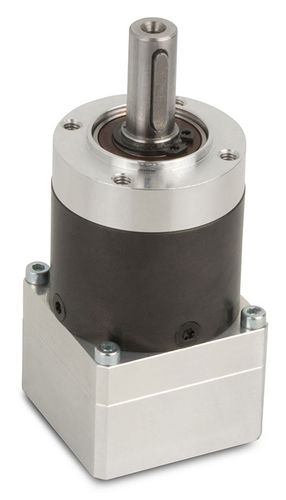

The 40PE004 planetary gearhead features a 4:1 gear ratio and a high operating efficiency. A low friction bearing design maintains maximum efficiency at all speeds.

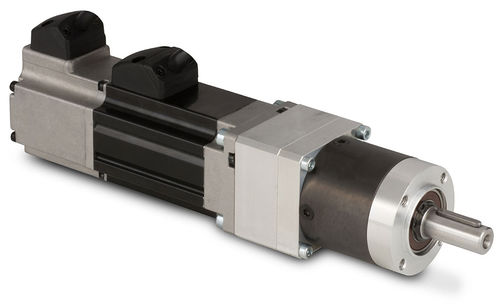

The table below shows compatibility with this gearhead and motors from Applied Motion Products:
• To purchase this gearhead for a motor listed below, select the gearhead part number according to the compatible motor type and click the Add to Cart button.

Part Number: 40PE004
Frame Size: 40 mm
Ratio: 4:1
Torque, Nominal: 133 in-lb
Torque, Max Accel: 212 in-lb
Torque, E-Stop: 266 in-lb
Length: 2.46 inches
Weight: 0.8 lbs
Backlash: 15 arc-min
Low Backlash: NA
Operating Temperature: -20 to 90 °C
IP Rating: IP54
Service Life: 30,000 hours
Efficiency: 98%
Shaft Diameter: 10 mm (0.394 inch)

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Torque (Nm)	5 - 10 10 - 20 20 - 50 100 - 200
Shaft configuration	solid-shaft
Rotational speed (rpm)	4000 - 4000
