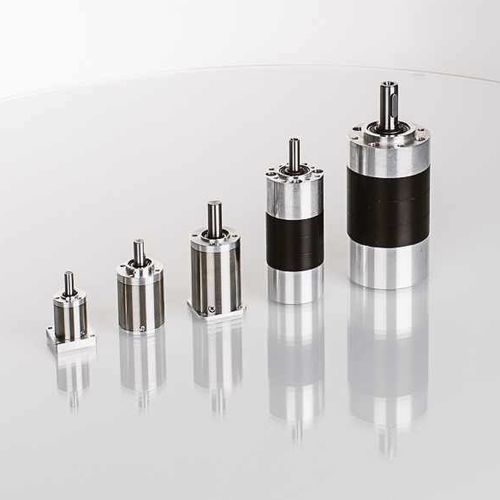

Our standard planetary gearboxes are a cost-effective solution for high torque transmissions on small diameters. We offer one, two, three and even four-stage planetary gearheads, with reduction ratios up to over 4000:1. All gearheads can be combined with our stepper motors, DC motors and BLDC motors.

• Metal and plastic design
• Special designs possible

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Torque (Nm)	0.5 - 1 1 - 5 10 - 20 5 - 10 20 - 50 100 - 200 50 - 100 200 - 500
Shaft configuration	solid-shaft
Number of stages	single-stage four-stage three-stage two-stage
Other characteristics	stainless steel aluminum for DC motors
Rotational speed (rpm)	3000 - 6000
Gear ratio (unit)	3.7 - 307
