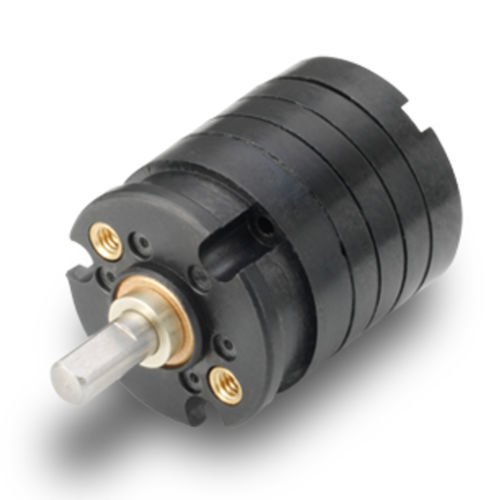

Our BA16 gearhead is a hybrid technology of parallel geartrain and planetary arrangement which results in higher power density and optimized efficiency available in smaller package. Also due to its inherent design, it can be widely used in applications requiring low noise.

Product Highlights
• For additional ratios, please download the specification pdf from the resources tab below
• High-precision performance at a competitive price point
• Reduction ratio of 22:1 to 3280.5:1
• Reduction gearhead with spur gears and planetary output
• Rated torque 0.2 Nm
• Compact design
• Customization as per application needs
• Sleeve and ball bearings options available

Customization Available
• Custom shafts - flats, knurling, diameter, length
• Mechanical integration upon request (housing, front & rear flange, shaft)
• Special lubricants

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	concentric
Torque (Nm)	0.1 - 0.2
Performance	low-noise high-precision
Other characteristics	compact miniature custom
Rotational speed (rpm)	8000 - 8000
Backlash (°)	1.5 - 1.5 3 - 3
