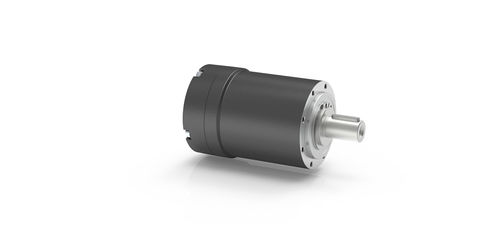

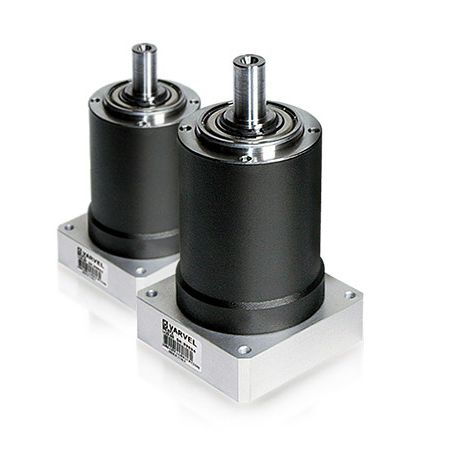

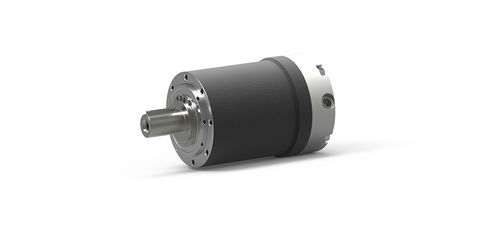

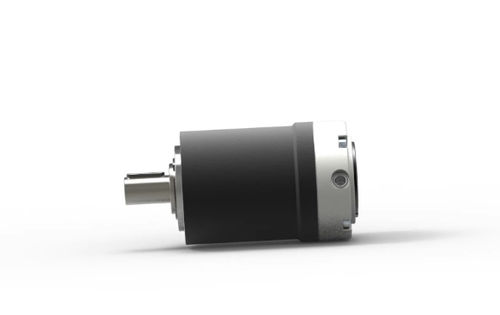

The RG Series of planetary gearboxes with reduced backlash allow high speed decreases with reduced dimensions and are used for applications that require high levels of precision during operation.

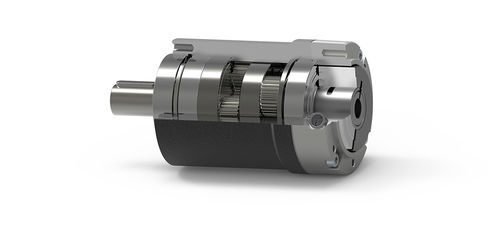

Main Components
• Housing in hardened and tempered steel
• Bearings with ball roller
• Input flanges in die cast aluminium
• Gears in alloy or hardened steel
• Synthetic oil for lifetime lubrication of the gears

Plus
• High efficiency
• High precision
• Extended lifetime with excellent reliability
• Easy installation and maintenance
• Weight reduced
• Silent running

Special Solutions
For Application Sectors
• Silicone, Viton or special seals for high/low temperatures and food & beverage sector
• Anodization for chemical and ship-building/marine sectors
• Special lubricants for high/low temperatures and food & beverage sector
• Non-standard breather plugs for high/low temperatures
• Special paint finishes for chemical, ship-building/marine and food & beverage sector

For NEMA and servo motors
• Flanges and couplings for servomotors
• Output holes in inches
• Input couplings for NEMA motors

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Torque (Nm)	200 - 500
Shaft configuration	solid-shaft
Number of stages	single-stage two-stage
Performance	precision low-backlash
Applications	building
Other characteristics	for DC motors food
Rotational speed (rpm)	2500 - 4800
Gear ratio (unit)	3.1 - 100
