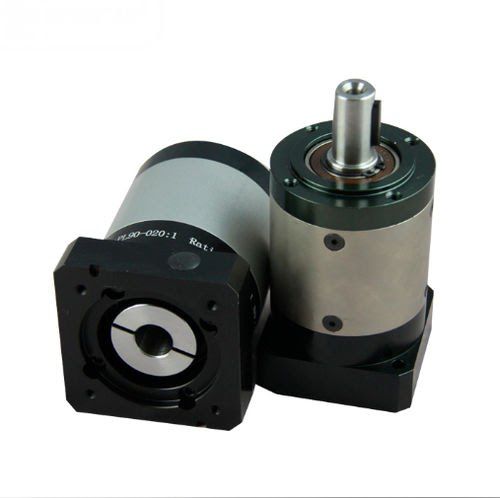

Economy planetary gearbox
The PL is notably light, extremely powerful, yet suitable for complex production cycles due to its low-friction bearing design and optimized lubrication. A genuine powerhouse at an attractive, fair price.
Fit national standard & NEMA standard. Accept custom making.

Servo Gearbox Database (PL series) : PL40-PL200

Frame Size - 40mm, 60mm, 80mm, 90mm, 120mm, 140mm, 160mm, 200mm
Output Torque - 12Nm-1152.5Nm
Ratio 1 stage - 3,4,5,6,7,8,10
Ratio 2 stage - 9,12,15,16,20,25,30,32,35,40,50
Ratio 3 stage - 60,64,80,100,125,140,150,200,320,512
Backlash 1 stage - P0<3 arc-min P1<5 arc-min P2<8 arc-min (excl. PL40)
Backlash 2 stage - P0<5 arc-min P1<8 arc-min P2<10 arc-min (excl. PL40)
Backlash 3 stage - P0<8 arc-min P1<10 arc-min P2<12 arc-min (excl. PL40)

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Torque (Nm)	5 - 10 1 - 5
Number of stages	single-stage multi-stage
Performance	precision low-backlash high-torque
Applications	for food industry machinery transmission for agricultural machinery for construction equipment for industrial applications for marine applications for industrial vehicles for mining equipment for textiles for the chemical industry for the petrochemical industry for printing machines
Other characteristics	compact mechanical transmission custom for robotics for the metallurgical industry cutting
Rotational speed (rpm)	0 - 10000
