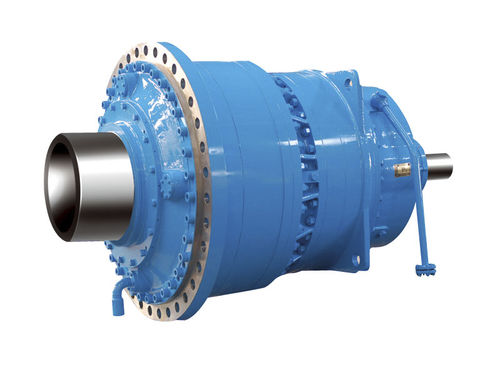

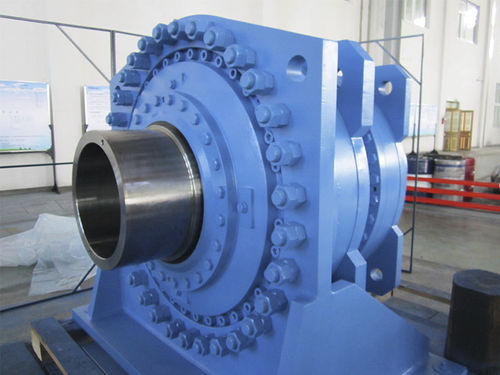

P Series Planetary Gearboxes
Rated Power: 0.4~12,934kW
Ratio: 25~4,000
Input Speed: 1500, 1000, 750r/min
Output Speed: 0.19~60r/min
Output Torque: 22~2600kNm
Mounted: Horizontal or Vertical Mounting
Shafts Position: Coaxial,Parallel,Right Angle

Components:
1. Housing: Nodular Cast Iron / Ductile Iron
2. Gearset: Planetary Gear Set (Epicyclic Gearing)
3. Input Configurations:
Integrated with Electric Motors (AC Motors, Hydraulic Motors, Geared Motors)
IEC-normalized Motor Flange & Motor Adaptor
Keyed Solid Shaft Input
4. Output Configurations:
Keyed Solid Shaft Output
Involute Splined Solid Shaft Output (GB or DIN Standard)
Involute Splined Hollow Shaft Output (GB or DIN Standard)
Hollow Shaft Output with Shrink Disc
5. Optional Accessories:
Gear Unit Base for Horizontal Mounted
Torque Arm, Torque Shaft Support
Motor Mounting Bracket
Dip Lubrication Compensation Oil Tank
Forced Lubrication Oil Pump
Cooling Fan, Auxiliary Cooling Devices

Models:
P2N – 2 Stage Planetary Gear Set, Coaxial
P2L – 2 Stage Planetary Gear Set Integrated with Spiral Bevel Gear Pair, Right Angle
P2S – 2 Stage Planetary Gear Set Integrated with Helical Gear Pair, Parallel Shaft
P2K – 2 Stage Planetary Gear Set Integrated with Helical Gear Pair & Bevel Gear Pair, Right Angle
P3N – 3 Stage Planetary Gear Set, Coaxial
P3S – 3 Stage Planetary Gear Set Integrated with Helical Gear Pair, Parallel Shaft
P3K – 3 Stage Planetary Gear Set Integrated with Helical Gear Pair & Bevel Gear Pair, Right Angle
Frame Sizes: 9, 10, 11, … 34, 35, 36 (exclude 15)

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Performance	low-noise
Applications	shaft fan
Other characteristics	flange mounted vertical motor
Rotational speed (rpm)	0.19 - 60
Power (W)	934000 - 934000 400 - 400
