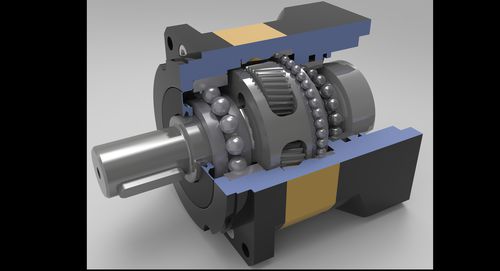

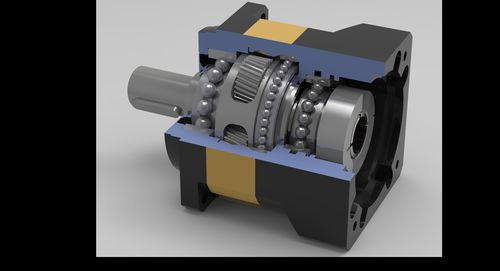

All KPX planetary gearbox adopt the alloy forged steel as the raw material, the powerful heat treatment, the latest helical gear design, full needle roller bearings, and global top level gear grinding craft. Perfect integrated design of caged planetary carrier and output shaft to realize high rigidity. For any high precision applications, KPX would be your great option for planetary gearhead.

Options
- Output shaft key way, without key be available.
- Synthetic lubrication grease, low temperature grease available.
- Adaptor flange solution available.
Features
- Extremely high precison gearing and powerful stability.
- High efficiency and low noise control.
- Long constant operation service lifetime.
- Optimized inertia moment.
- Limited temperature rise.
- Flexible input mounting dimensions.
- Maintenance free for whole service Service

Parameter Name	Parameter Value
Type	planetary helical
Shaft orientation	coaxial
Torque (Nm)	200 - 500 100 - 200 20 - 50 50 - 100 500 - 1000 1000 - 2000 2000 - 5000
Number of stages	single-stage two-stage three-stage
Performance	high-precision low-backlash high-torque high-performance maintenance-free high-speed high-rigidity high load capacity
Applications	transmission for automation for textiles for servo motors for railway applications for medical devices for food industry machinery for printing machines shaft
Other characteristics	compact modular industrial custom for robotics machine tool for packaging machines electronic equipment IP65
Rotational speed (rpm)	2000 - 2000
