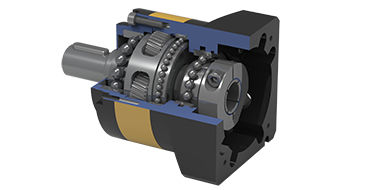

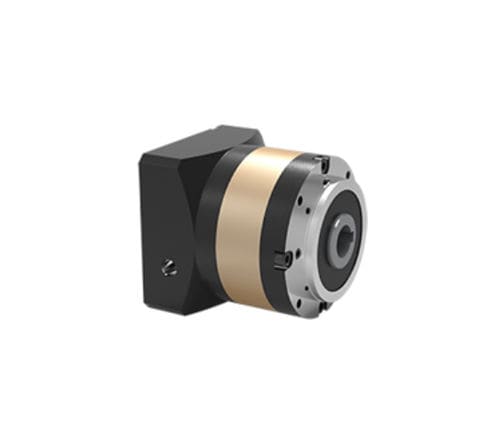

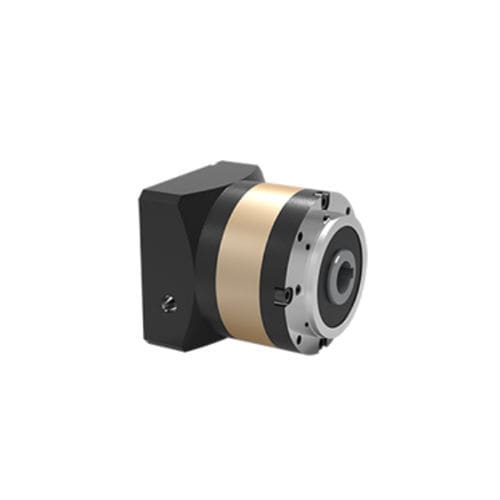

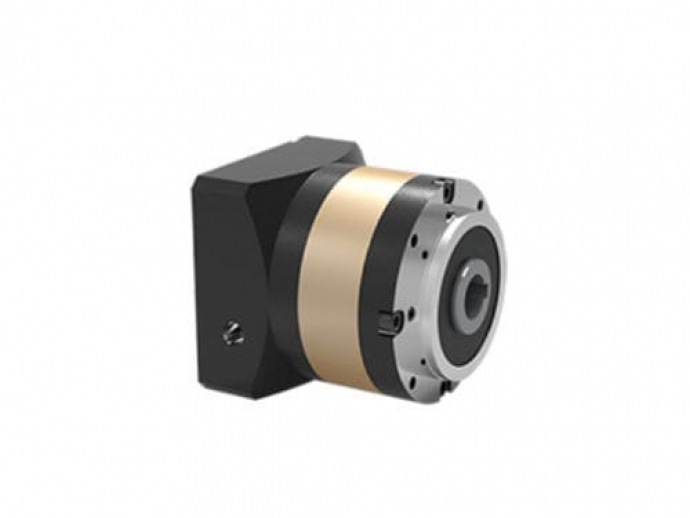

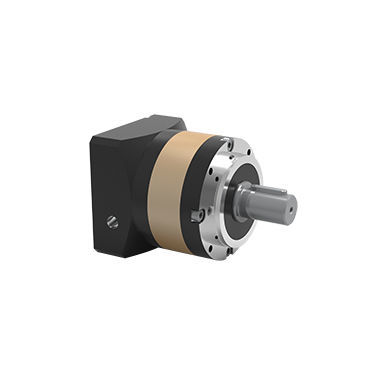

All KPE planetary gearbox adopt the alloy forged steel as the raw material, the powerful heat treatment, the latest helical gear design, full needle roller bearings, and global top level gear grinding craft. Perfect integrated design of caged planetary carrier and output shaft to realize high rigidity. For any high precision applications, KPE would be your great option for planetary gearhead.
Options

- Output shaft key way, without key be available.
- Synthetic lubrication grease, low temperature grease available.
- Adaptor flange solution available.

Features

- Extremely high precision gearing and powerful stability.
- High efficiency and low noise control.
- Long constant operation service lifetime.
- Optimized inertia moment.
- Limited temperature rise.
- Flexible input mounting dimensions.
- Maintenance free for whole service.

Parameter Name	Parameter Value
Type	planetary helical
Shaft orientation	coaxial
Torque (Nm)	200 - 500 100 - 200 20 - 50 50 - 100 500 - 1000 1000 - 2000 2000 - 5000 5000 - 10000
Shaft configuration	solid-shaft
Number of stages	single-stage two-stage
Performance	high-efficiency low-noise high-precision
Other characteristics	flange IP65
Rotational speed (rpm)	300 - 300
