DMPD-N

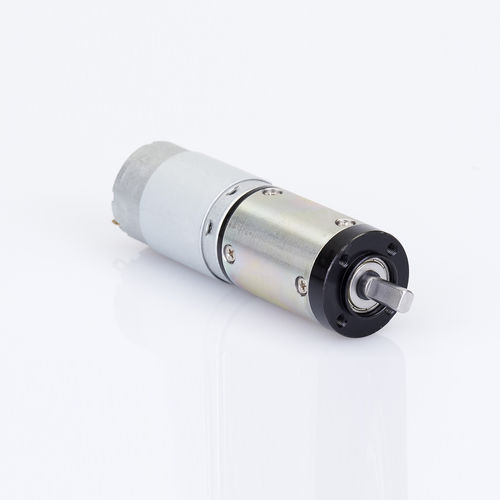

28 mm diameter planetary gear motor. It’s possible to use different motors with various lengths, according to the limits and needs imposed by the space it is to be used in. Various gear ratios with a maximum speed of 1600 rpm. The electrical characteristics may be customised.

General information
• Direction of rotation: according to polarity
• Working temperature: -10°C ̴ + 60°C
• Gearbox with sleeve bearing
• Options: a) hall sensor magnetic encoder – b) ball bearing – c) customized connections

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Other characteristics	motor
Rotational speed (rpm)	8 - 1621
