ECONOMICAL, RELIABLE, PRECISE

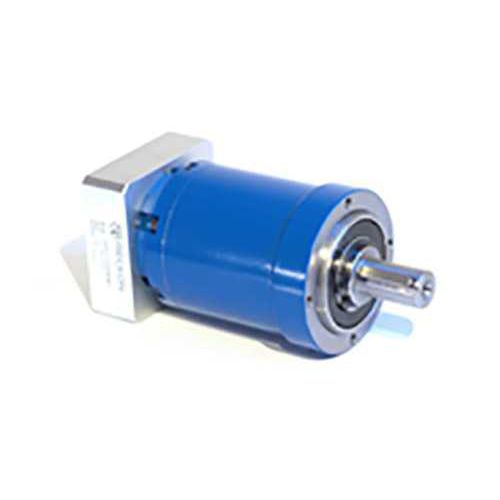

Access is a low-backlash planetary gearbox designed for moderate to medium-duty applications with variations of torque. It is popular in cartesian pick&place robots.

Acceleration capacity+++
Fast reversals+++
Radial load rating+++
Axial load rating+
Stiffness+++
Precision++
Economy+++++
Suitable to servomotor applicationsYES
Number of sizes in this line4 (40 to 120)
Angular backlash<10 arc-min (1 stage) or <13 arc-min (2 stages)
Optional backlash not available
Available ratios3 to 100

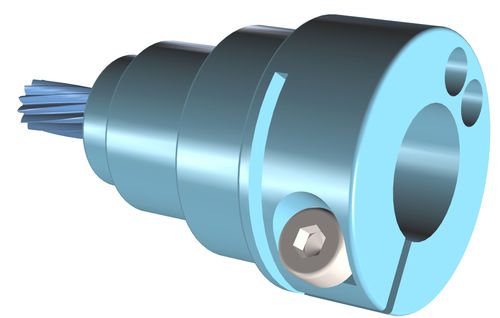

Motor shaft connectionBalanced coupling

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Torque (Nm)	200 - 500 100 - 200 20 - 50 50 - 100 10 - 20 5 - 10
Performance	precision low-backlash
Applications	shaft
Other characteristics	motor
Rotational speed (rpm)	6000 - 6000
Backlash (°)	0.08 - 0.22
