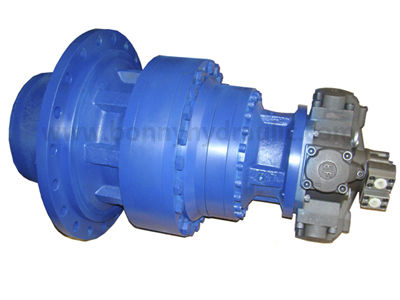

300 Series Planetary Gearbox

Model

300 Series

Replace for

Brevini ED, ET, EQ, EM, EC and EL series

Bonfiglioli 300 series

Dinamicoil RE, RA series

Reggiane Riduttori RR series

Ratio

3.4-5000

Output Torque

1000-450000N.m

The installation and overall dimension of planetary gearboxes are strictly designed in accordance with Italy and American manufacturers, so they can be completely interchangeable with Brevini ED, ET, EQ, EM, EC and EL series, Bonfiglioli 300 series and Dinamicoil RE, RA series on performance and connection dimensions. They are the ideal product to replace those Italian products.

Features:
Gear Unit Version:

in line or right angle (with screw bevel pair Gleason)
Output Configuration:

Foot and flange mounted
Output shaft:

solid with key, splined, splined hollow, hollow shaft with shrink disc
Gear Unit Input Configurations:

IEC-normalized Motor Adaptors or Solid Input Shaft
Main Brake Motor Features:

DC and AC brake
Hydraulic Brake:

Fast Braking and/or brake releasing through
Mounting dimension is available on request.
Brake, balance valve, shuttle valve and the distributor which can integrate all kinds of function valve are also available on request.

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	right angle
Torque (Nm)	10000 - 10000 1000 - 2000
Applications	shaft
Other characteristics	flange motor
