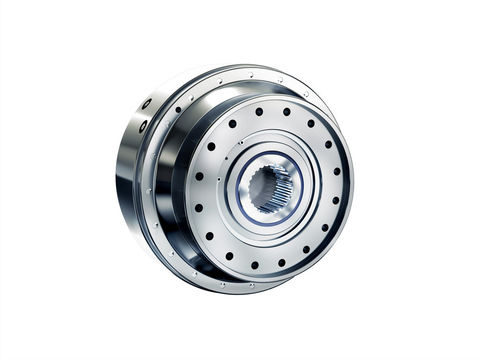

The compact and high-capacity centrifuge drive in a flange design and all-steel construction.
Overview
The ZS – Cyclo-Line series is available in three different versions:
ZS – Shaft-mounted gearbox for internal installation
ZS-M – Compact shaft-mounted drive
ZS-L – Compact high-performance drive

Features and Benefits of ZS – Cyclo Line
Optimized Housing
Coaxial all-steel housing optimized for use with centrifuges
Compact Design
Compact and short design leads to stiffer running of the centrifuge with less vibration
Long Lifetime
Long lifetime, high levels of operating safety and impact-load tolerance
Lubrication
Grease lubrication (up to ZS619); intrinsically safe against leaks / Sealed oil filling (from ZS621, optionally ZS610 – ZS619) / Food-grade version available
Wear-free
Wear-free operation, even at differential speeds near "0" rpm
High Efficiency
High efficiency and low-operating temperature
Customizable
Able to design according to individual-customer specifications
Balanced
Complete housing balanced (DIN ISO 1940)
ATEX Certified
ATEX certification in accordance with Group II (optional)

Parameter Name	Parameter Value
Type	planetary cycloidal
Shaft orientation	coaxial
Torque (Nm)	200 - 500 10000 - 10000 500 - 1000 1000 - 2000 1 - 5 2000 - 5000 5000 - 10000
Shaft configuration	hollow-shaft solid-shaft
Number of stages	single-stage two-stage
Performance	high-performance high-capacity
Applications	centrifuge shaft
Other characteristics	compact flange shaft-mounted mounted
Rotational speed (rpm)	0 - 200
Gear ratio (unit)	6 - 87
