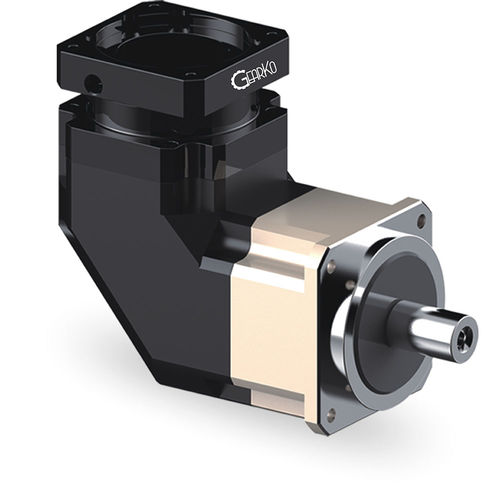

The most versatile model with wide range of ratios
High rigidity and output torque
Easy mount to any motor
Electroless nickel surface plating for anti-corrosion

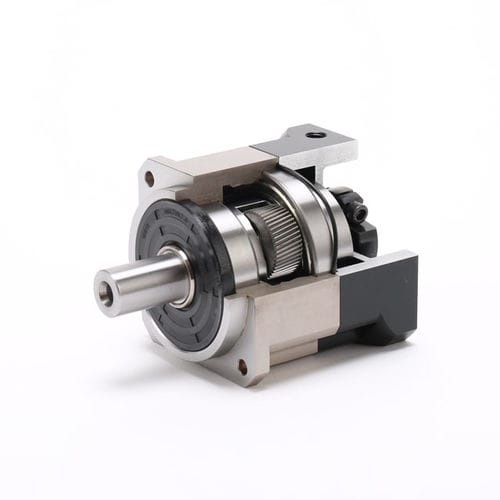

Single-piece design for output shaft & planet carrier with robust bearings
Single-piece design for ring gear & housing
Single-piece design for sun gear & input shaft ensuring high concentricity
Full complement solid uncaged needle roller bearings for planet gears
All helical gearing for low noise and high precision
Extreme low vibration and lifelong maintenance-free

Parameter Name	Parameter Value
Type	planetary helical
Shaft orientation	coaxial right angle
Torque (Nm)	200 - 500 100 - 200 50 - 100 500 - 1000 1000 - 2000 2000 - 5000 10 - 20
Performance	precision maintenance-free
Applications	shaft
Rotational speed (rpm)	2000 - 10000
Backlash (°)	0.02 - 0.12
