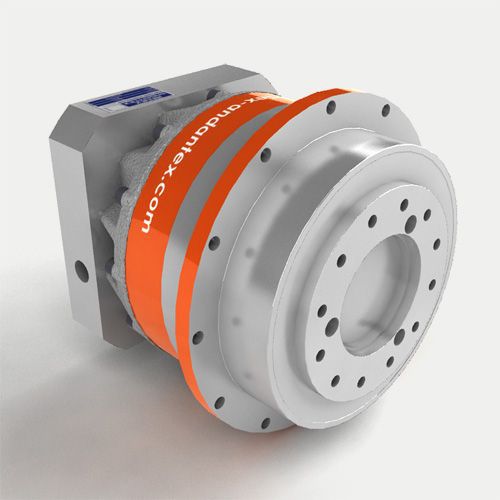

SRP, a versatile and multi-use solution, is not just another simple planetary gearbox. SRP high-tech planetary reducer is a true integrated concept, including several functions combined together to offer a complete sub-assembly to the most demanding machines.

SRP is the ultimate high-tech servo-reducer, specially dedicated to designs requiring:

Superior output torsional stiffness
Ultra-high output radial stiffness and Tilting moment
Patented output bearing design
A high-tech planetary gear train, based on REDEX’s differential know-how
ISO 9409-1 output drive flange for mounting pinions, pulleys, couplings, etc.
High input speeds
Superior acceleration and excellent torque density
Minimum backlash (1 – 3 arc-minutes)

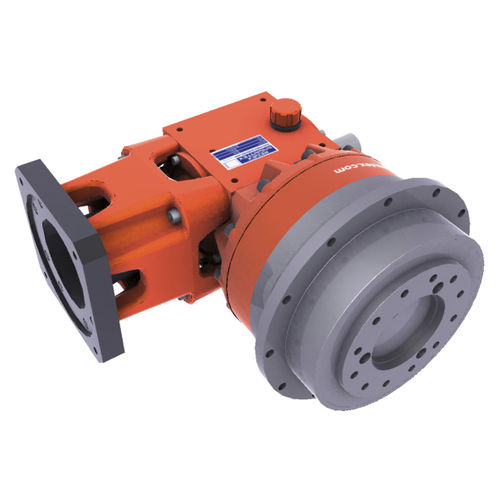

In-Line or right angle arrangements
This versatile design makes it easy for design engineers to find exact solutions to the most demanding applications.

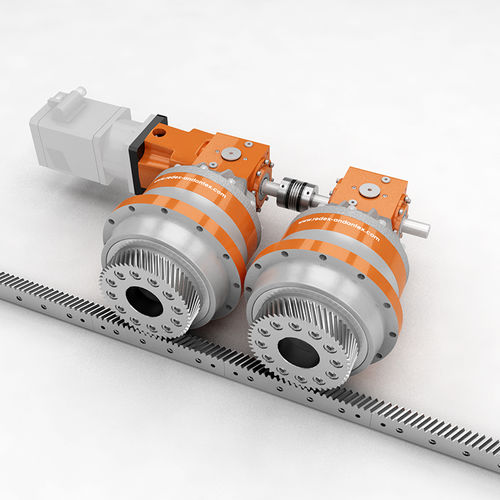

Two units can be combined together to create a ZERO-BACKLASH DualDRIVE kit (mechanical preload) or TwinDRIVE kit (electrical preload)

Parameter Name	Parameter Value
Type	planetary gear train
Shaft orientation	right angle
Torque (Nm)	10000 - 10000 200 - 500 500 - 1000 1000 - 2000 2000 - 5000 5000 - 10000
Performance	zero-backlash
Applications	drive
Other characteristics	flange combined
Rotational speed (rpm)	0 - 6000
