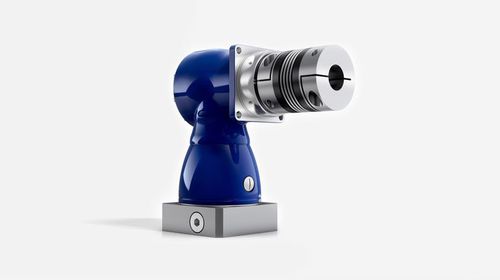

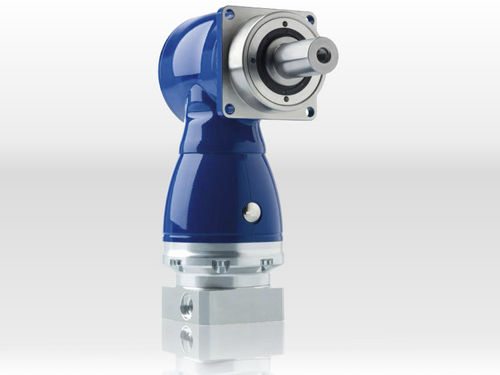

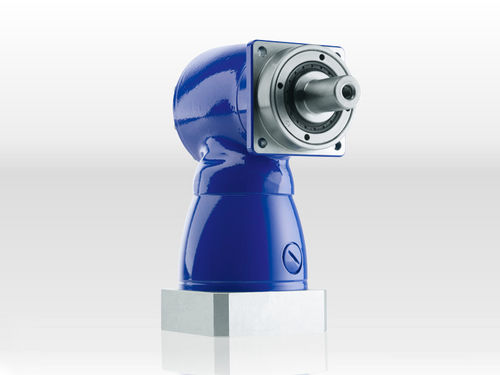

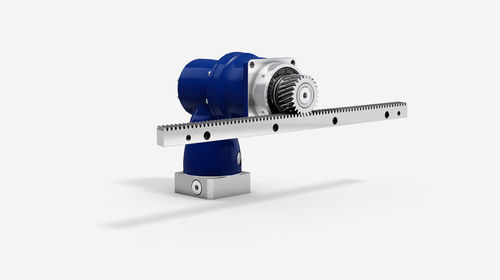

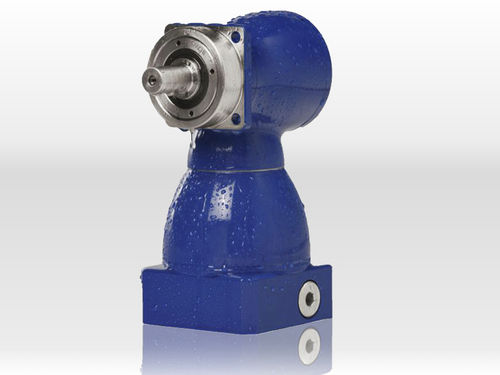

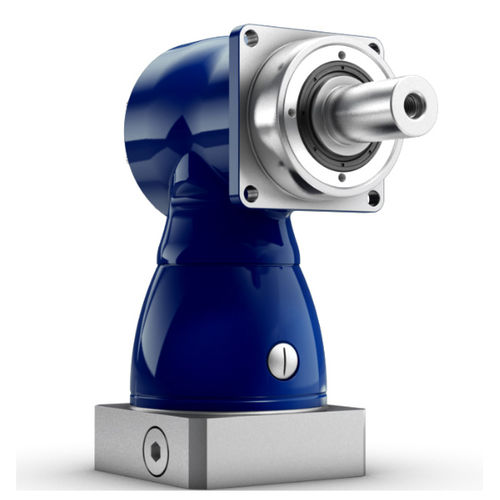

The representatives of our versatile hypoid gearboxes with SP+ compatible output geometry. SK+ gearboxes are appreciated for their high precision and efficiency as well as the possibility to combine different options for the gearbox output. With an optional planetary pre-stage it is possible to reach highest input speeds.

Parameter Name	Parameter Value
Type	planetary hypoid
Shaft orientation	right angle
Torque (Nm)	20 - 50 200 - 500 100 - 200 50 - 100 500 - 1000
Performance	precision low-backlash
Applications	shaft
Other characteristics	for high-power motors
Rotational speed (rpm)	6000 - 6000
Backlash (°)	0.07 - 0.07
Gear ratio (unit)	3 - 100
