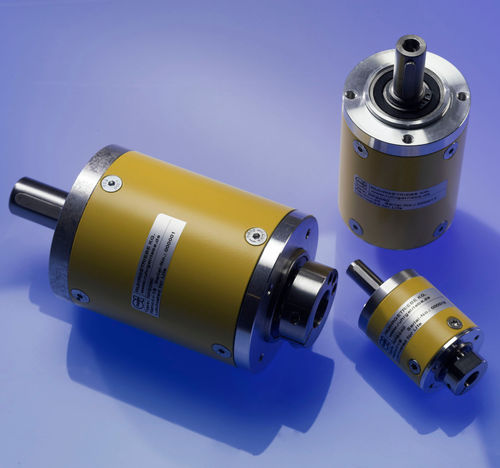

The low product-weight of the RPS line guarantees high power
densities.

Thus, the planetary gears of the RPS line are applicable
for high torque requirements as for example in axis movements at
dynamic operation.

Up to three planetary stages allow for a large
selection of transmissions.

Gear housing Ø (mm): 60
Nominal output torque (Nm): 26-39
Acceleration torque (Nm): 52-68
Emergency stop torque (Nm): 70-88

Ratios:
1-st.: 3, 4, 5, 7, 8
2-st.: 12, 15, 16, 20, 25, 32, 40, 49, 56, 64
3-st.: 80, 100, 125, 160, 200,

Circumferential backlash:
1-st.: <= 10 arcmin
2-st.: <= 12 arcmin
3-st.: <= 15 arcmin

Torsional stiffness (Nm/arcmin): 1,5

For further information see our product detail page.

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Torque (Nm)	20 - 50
Number of stages	single-stage two-stage three-stage
Performance	precision low-backlash high-torque high-efficiency high-rigidity maintenance-free
Applications	for industrial applications for servo motors
Other characteristics	compact for electric motors for DC motors for asynchronous motors
