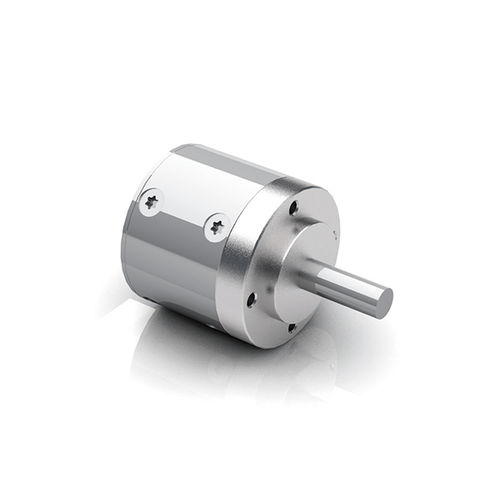

» Compact, industry compatible planetary gearbox
» High efficiency
» Ring gear, planetary carriers and sun wheels made of steel
» Output shaft with double ball bearings
» All stages have straight toothing

Gear ratio - 4.5 : 1
Number of stages:1
Nominal output torque Ncm:40
Max. efficiency - %:90
Max. axial load - N:30
Max. radial load - N:100

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Torque (Nm)	1 - 5
Performance	high-power
Applications	for electrical drives
Other characteristics	compact
