The Planetary gear range takes advantage of our many years of accumulated design expertise, together with the use of high quality materials and components.

The end result is a high quality series of planetary gear reducers and geared motors offering a high load carrying capacity, high efficiency, quiet running and reliable drive solution.

Standard unit versions available:

The Planetary gear range is designed to be dimensionally interchangeable with other major manufacturers and is designed to be easily modified to suit more custom requirements.

Parallel (co-axial) drive options:

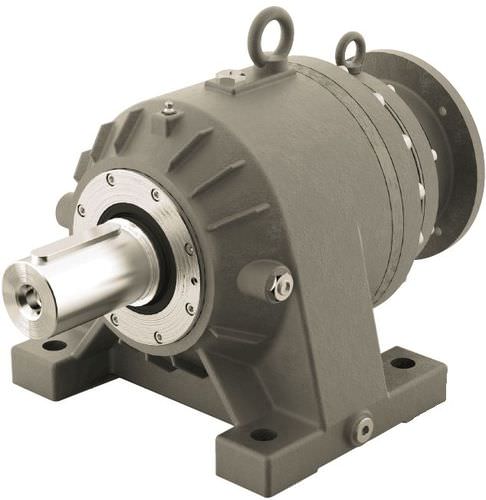

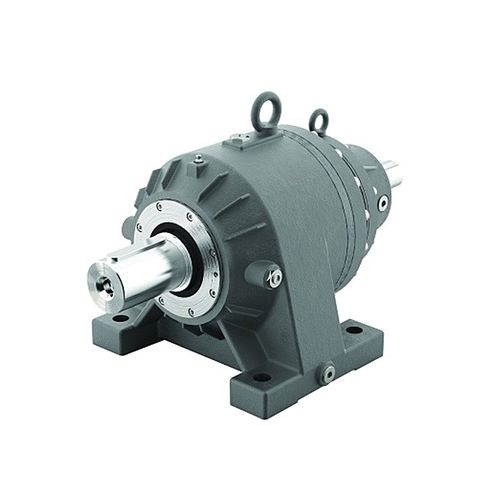

Base Mounted

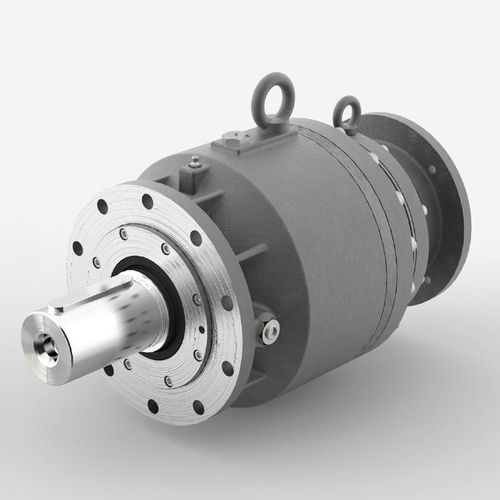

Flange Mounted
Input options:

Input shaft with keyway
Motor adapter to suit fitting of IEC B5 motor
Motor adapter to suit fitting of NEMA C flange motor
Output options:

Output shaft with keyway
Hollow output shaft to suit connection with shrink disc
Output shaft with external spline

Standard unit versions available:
The Planetary gear range is designed to be dimensionally interchangeable with other major manufacturers and is designed to be easily modified to suit more custom requirements.

Parallel (co-axial) drive options:
Base Mounted
Flange Mounted
Input options:
Input shaft with keyway
Motor adapter to suit fitting of IEC B5 motor
Motor adapter to suit fitting of NEMA C flange motor
Output options:
Output shaft with keyway
Hollow output shaft to suit connection with shrink disc
Output shaft with external spline

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Torque (Nm)	10000 - 10000
Applications	conveyor
Other characteristics	with flange
Power (W)	0 - 90000
Gear ratio (unit)	3.6 - 2400
