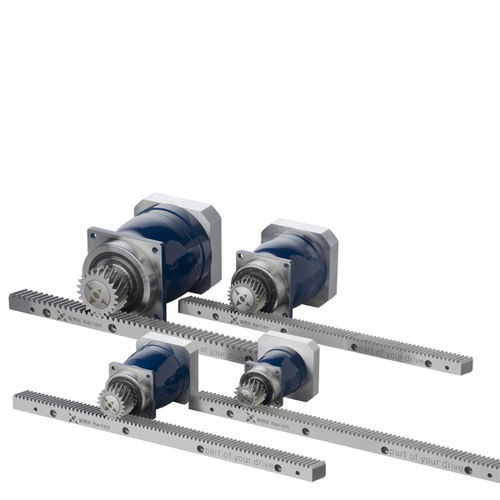

Rack & Pinion Drive

The combination of low-backlash planetary gearboxes with high-precision pinions and racks is extremely energy-efficient, precise, dynamic and convincing thanks to the long service life. Rack & Pinion Drives of WMH Herion and VOGEL enable even machine gantries weighing tonnes to be accelerated dynamically and positioned accurately down to the μm range.

Summary of system standards:

1. High Precision
Gearboxes with a splined shaft connection on the output shaft
MPRW with reduced backlash and rack in 5h23 quality, pinion in 5e24 quality.
- Gearbox sizes: 050, 100, 200, 300, 04, 05
- Output torque: up to 850 Nm
- Module of rack and pinion: 2 - 4

2. Precision
Gearboxes with a keyway connection on the output shaft
MPRN with standard clearance and rack in 6h23 (from 2000 mm 6h24) quality, pinion in 7e25 quality.
- Gearbox sizes: 050, 100, 200, 300
- Output torque: up to 315 Nm
- Module of rack and pinion: 2 - 3

3. Rack dimensions
- In Q5, the rack can be delivered as 1 m or 0.5 m as standard.
- In Q6, the rack can be delivered as 2 m, 1 m or 0.5 m as standard.

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Torque (Nm)	200 - 500 100 - 200 500 - 1000
Performance	precision low-backlash
Applications	for rack-and-pinion drives
Rotational speed (rpm)	6 - 385
