Planetary gear reducer MPG plus

Planetary gear reducer MPG plus

Planetary gear reducer MPG plus

About


We supply the suitable gear box for your motor; just use your servomotor.
max® planetary gear units
We can supply you with German branded gear boxes which can be fitted to almost all motors without any problems thanks to available adapter parts.

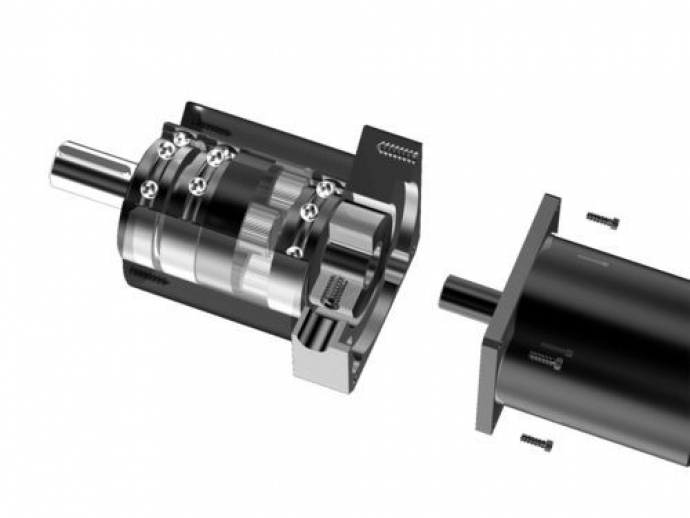

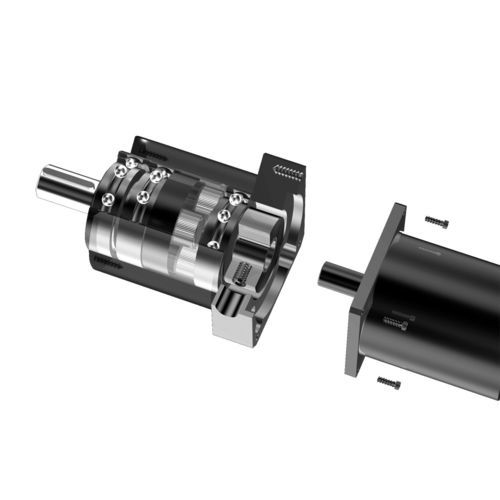

The connection between the motor shaft and the gear box drive shaft is made via a clamping hub. The clamping screw in the clamping hub is tightened through the mounting hole in the adapter plate.
The advantages are obvious:

• 3-fold EMERGENCY STOP torque
• service life 20,000 h
• low torsional backlash
• high efficiency
• suitable for cyclic and continuous operation
• axial length compensation
• suitable for all mounting positions
• maintenance-free due to lifetime lubrication
• easy mounting of servo and IEC motors due to clamping ring technology



PARAMETERS

Parameter Name Parameter Value
Type
planetary
Shaft orientation
coaxial
Torque (Nm)
  • 200 - 500
  • 100 - 200
  • 20 - 50
  • 50 - 100
  • 10 - 20
Number of stages
two-stage
Performance
maintenance-free
Applications
  • drive
  • shaft
Rotational speed (rpm)
450 - 6000
Backlash (°)
0 - 0.16
Gear ratio (unit)
3 - 100
