LGU35-S7-A Series has been newly introduced.
This series is the successor series of the existing LGU35-S7, and has an improved durability by changing the carrier material.

Matex can provide from small sample quantity to large mass production quantity.
Unit price is depending on the quantity you need.
Please feel free to contact us.

Applicable Industries: Automotive Maker, Automotive Maker
Gearing Arrangement: Planetary
Output Torque: 5Nm
Input Speed: 3660-5000rpm
Output Speed: 1000rpm
Place of Origin: JP
Brand Name: Matex

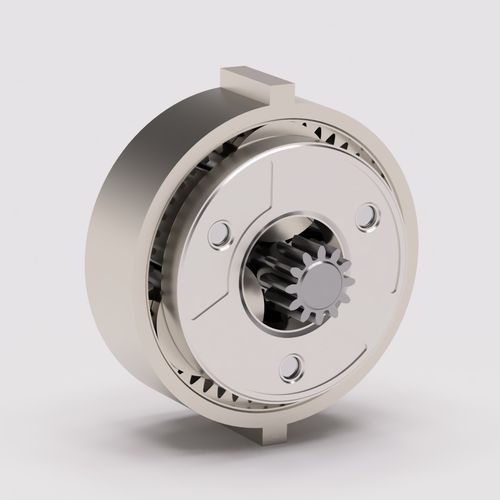

Product name: Planetary Gear Reducer
Ratio: 3.66:1-5:1
Input Form: Spur Gear
Output Form: Involute Serration Hole
Gear material: Sintered Metal
Structures: Stackable

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Torque (Nm)	5 - 10
Number of stages	single-stage
Performance	low-noise high-efficiency high-torque
Applications	for robots for industrial applications for medical devices for material handling equipment for machines for the chemical industry for valves for valve actuators for agricultural machinery
Other characteristics	compact modular
Rotational speed (rpm)	0 - 1000
Backlash (°)	3 - 5
