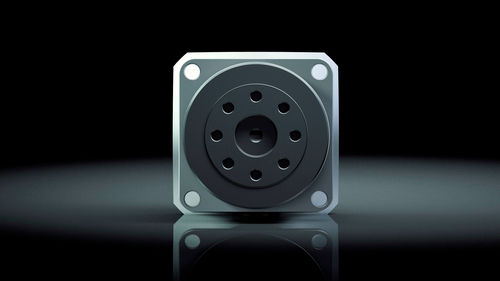

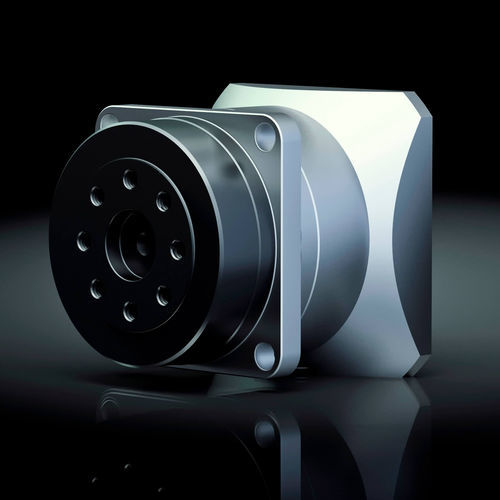

The HPGP Series Planetary Gears are available in six sizes with gear ratios between 4 and 45:1 offering repeatable peak torques from 10 to 2920 Nm. The precision output bearing with high tilting rigidity enables the direct introduction of high payloads without further support and thus permits simple and space saving designs.

Enhanced performance with Permanent Precision®

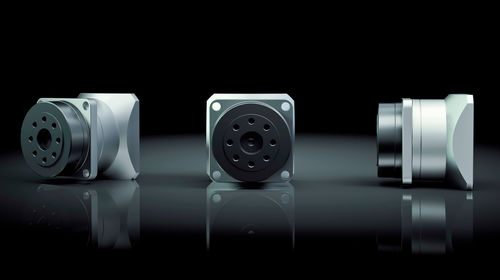

HPGP enhanced series of Planetary Gears are available in three versions: with output flange, with smooth output shaft and output shaft with keyway. Standard servo motors can be simply coupled to our Planetary Gears. Gearbox and motor together form a compact and lightweight system capable of withstanding high payloads ensuring stable machine properties with short cycle times are guaranteed.

Markets
Industrial robots, automation and handling
Machine tools
Packaging machines
Glasworking
Applications
Portal robots
Plastic and woodworking machines
Telemanipulation robots
Glas forming machines

Parameter Name	Parameter Value
Type	planetary
Shaft orientation	coaxial
Torque (Nm)	200 - 500 20 - 50 100 - 200 50 - 100 500 - 1000 1000 - 2000 2000 - 5000 10 - 20
Performance	precision
Applications	for servo motors shaft
Other characteristics	compact industrial flange
Rotational speed (rpm)	2500 - 10000
Gear ratio (unit)	4 - 45
