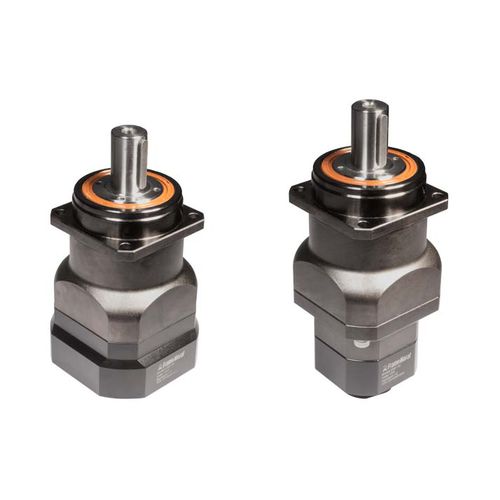

The precision planetary gear units of the GSF series with ground helical gearing and preloaded double taper roller bearings ensure low-noise synchronism due to their immense load carrying capacity and rigidity even under high load conditions. The one-piece planet carrier and the integrated needle roller bearings enable the transmission of high torques. The additional shaft sealing ring ensures maximum protection against dust and splash water in accordance with protection class IP65.

Parameter Name	Parameter Value
Type	planetary helical
Shaft orientation	coaxial
Torque (Nm)	200 - 500 100 - 200 50 - 100 500 - 1000 1000 - 2000 2000 - 5000
Performance	precision low-noise
Applications	transmission shaft
Other characteristics	double IP65
Rotational speed (rpm)	3000 - 3000
Backlash (°)	0.05 - 0.05 0.08 - 0.08
